Elicent AXM – Datasheet

Description

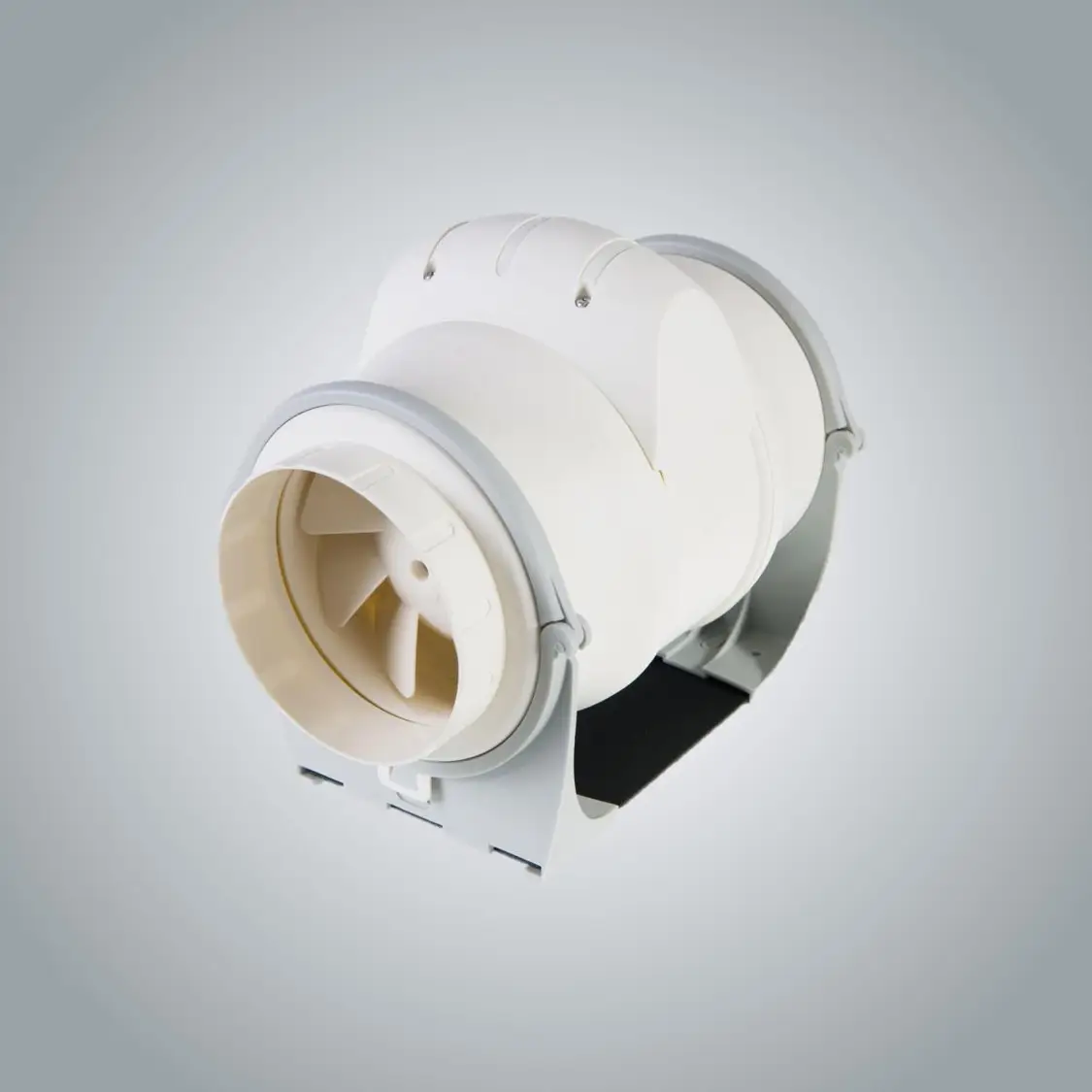

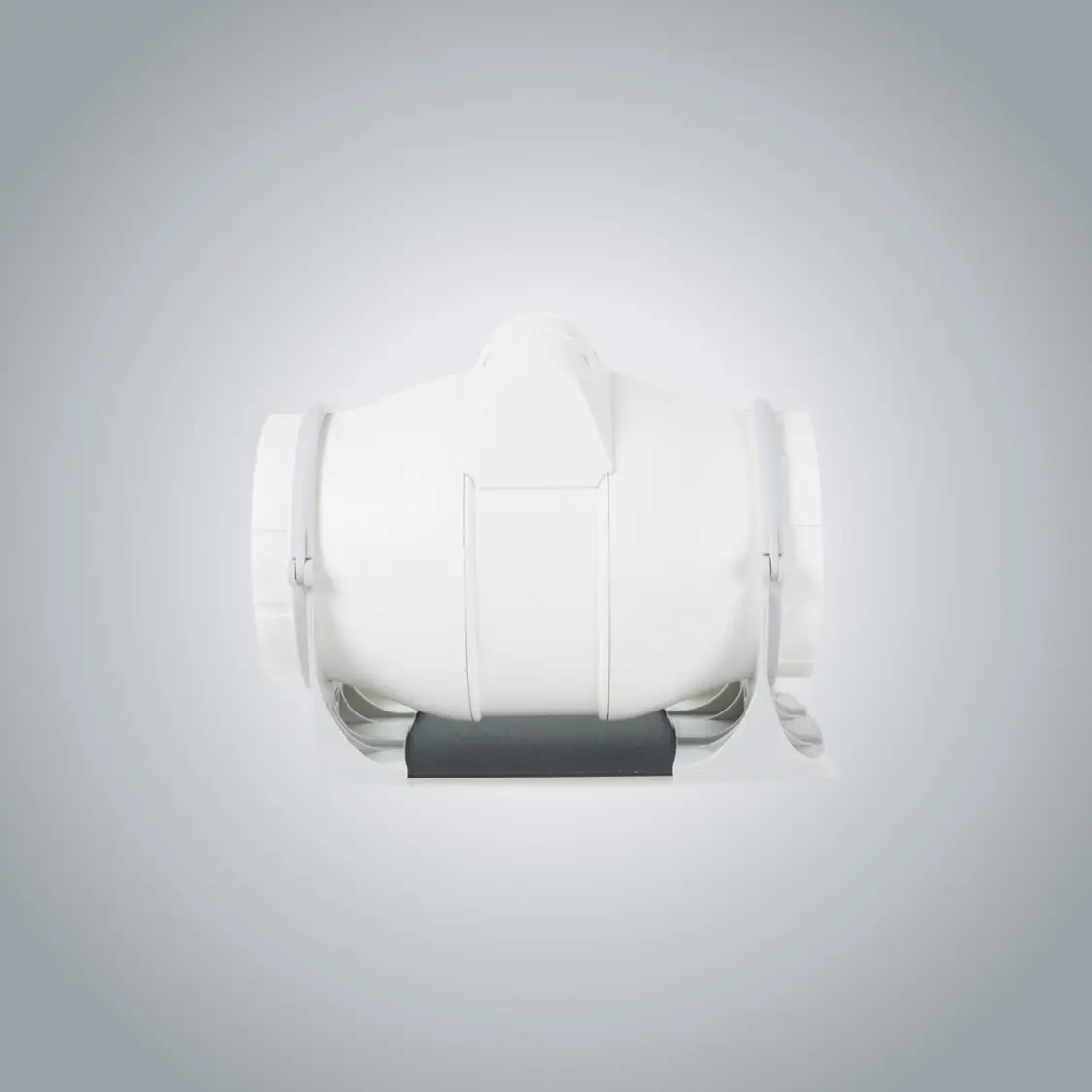

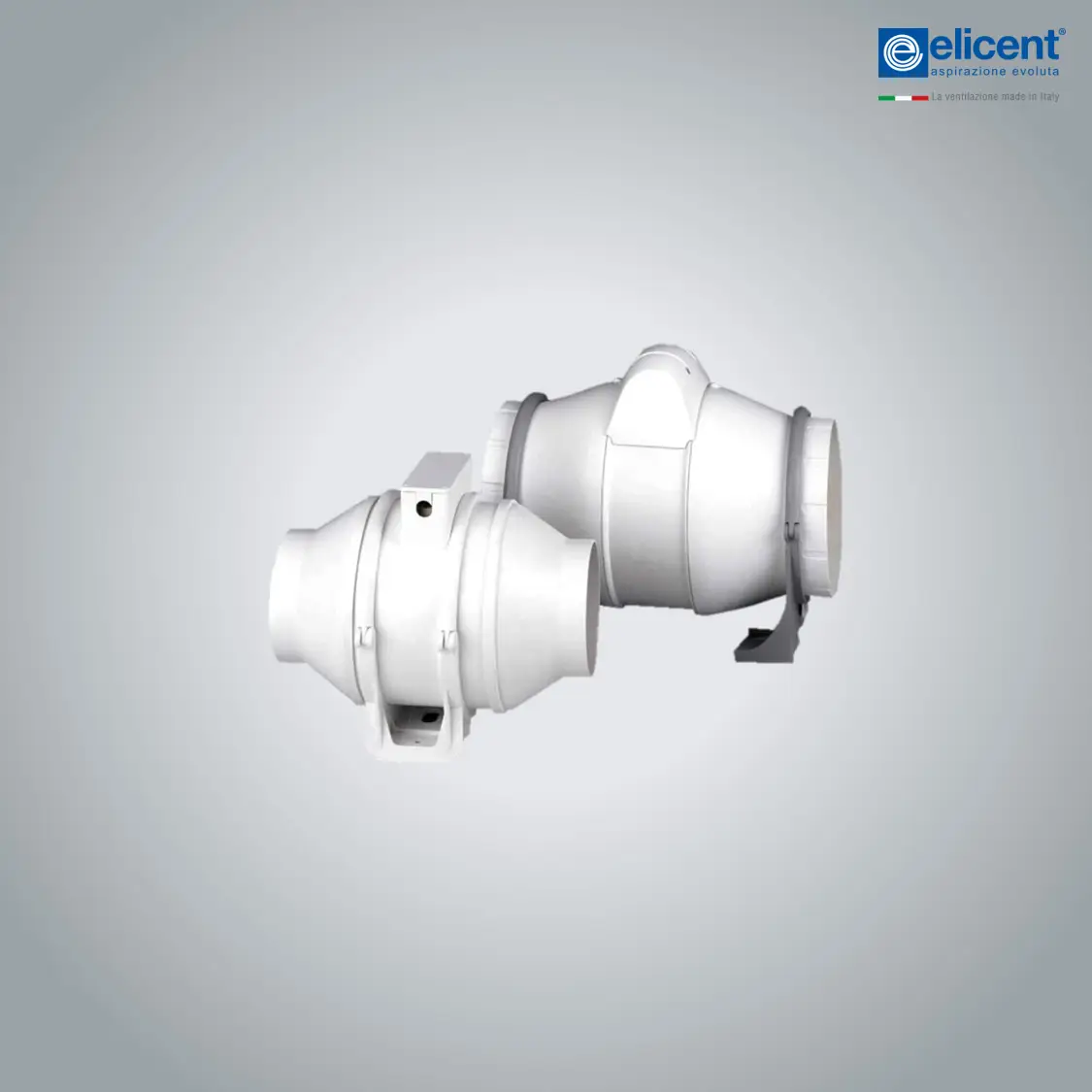

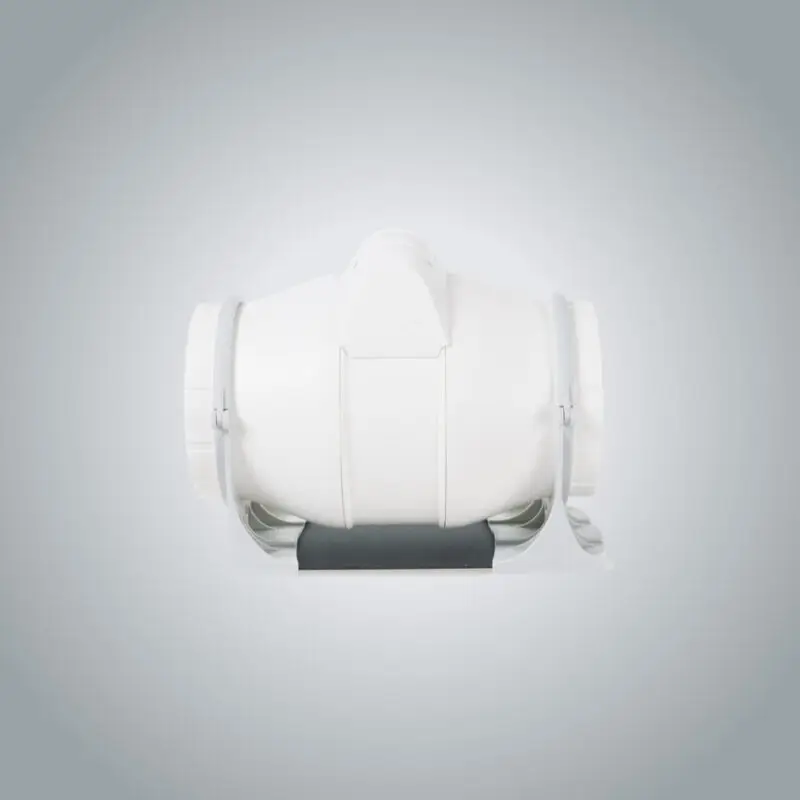

AXM is a series of mixed-flow fans in polypropylene for in-line duct installation. The installation is quick and easy thanks to pre-installed mounting brackets and an external connection box.

Highlights

• In-Line fan entirely made out of durable ABS
• For direct installation between Ø100/150 mm ducts

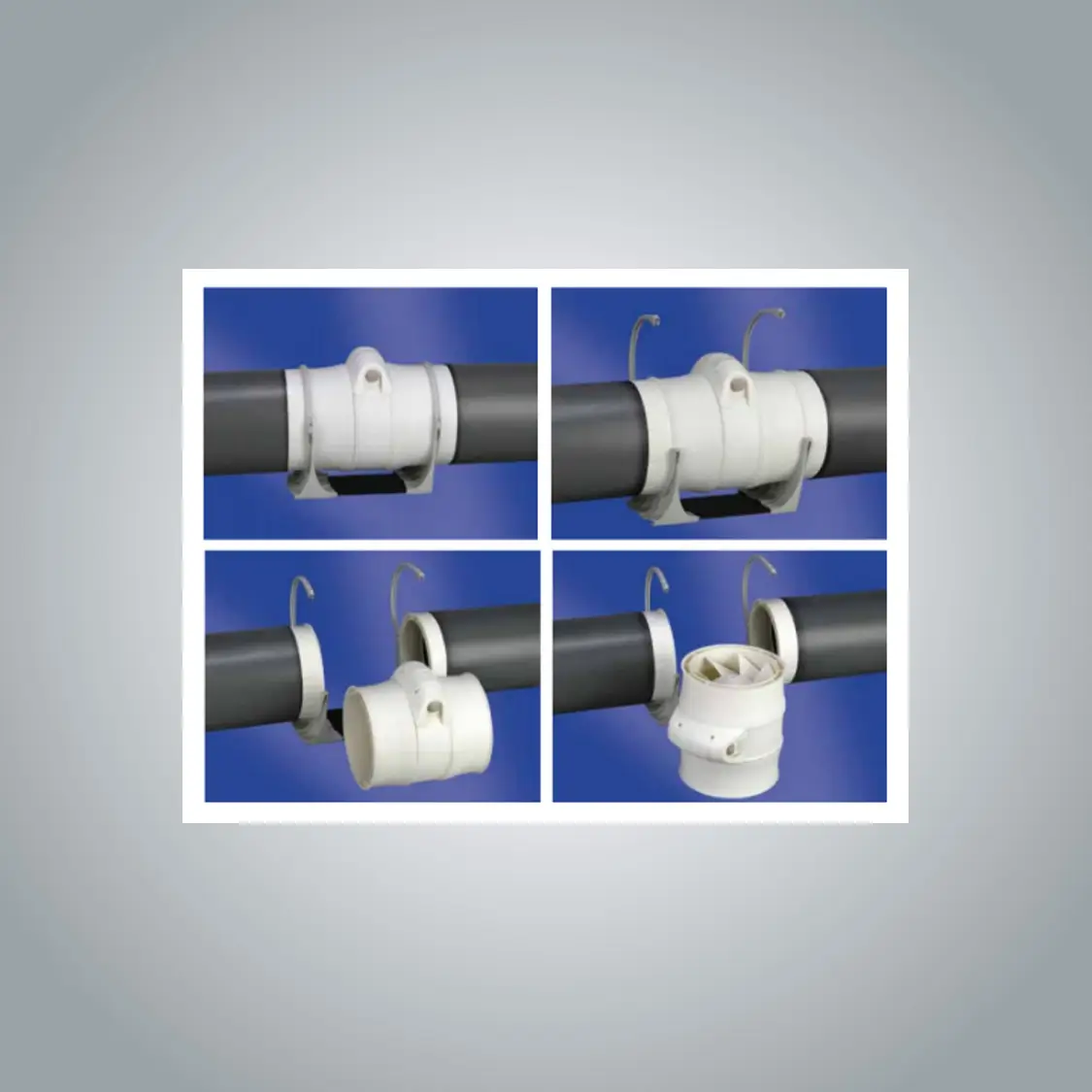

• Easy installation and maintenance with mounting clamps
• Mixed flow impeller with high air flow and medium pressure
• Step speed (Ø150mm: 2-step, Ø200mm: 3-step)
• Robust motor with ball bearings, maintenance-free
• Thermal overload protection as a standard feature
• Ideal for large bathroom air extraction or effective heat transfer
• Meets G4 and Healthy Home Standard
• 3-year warranty

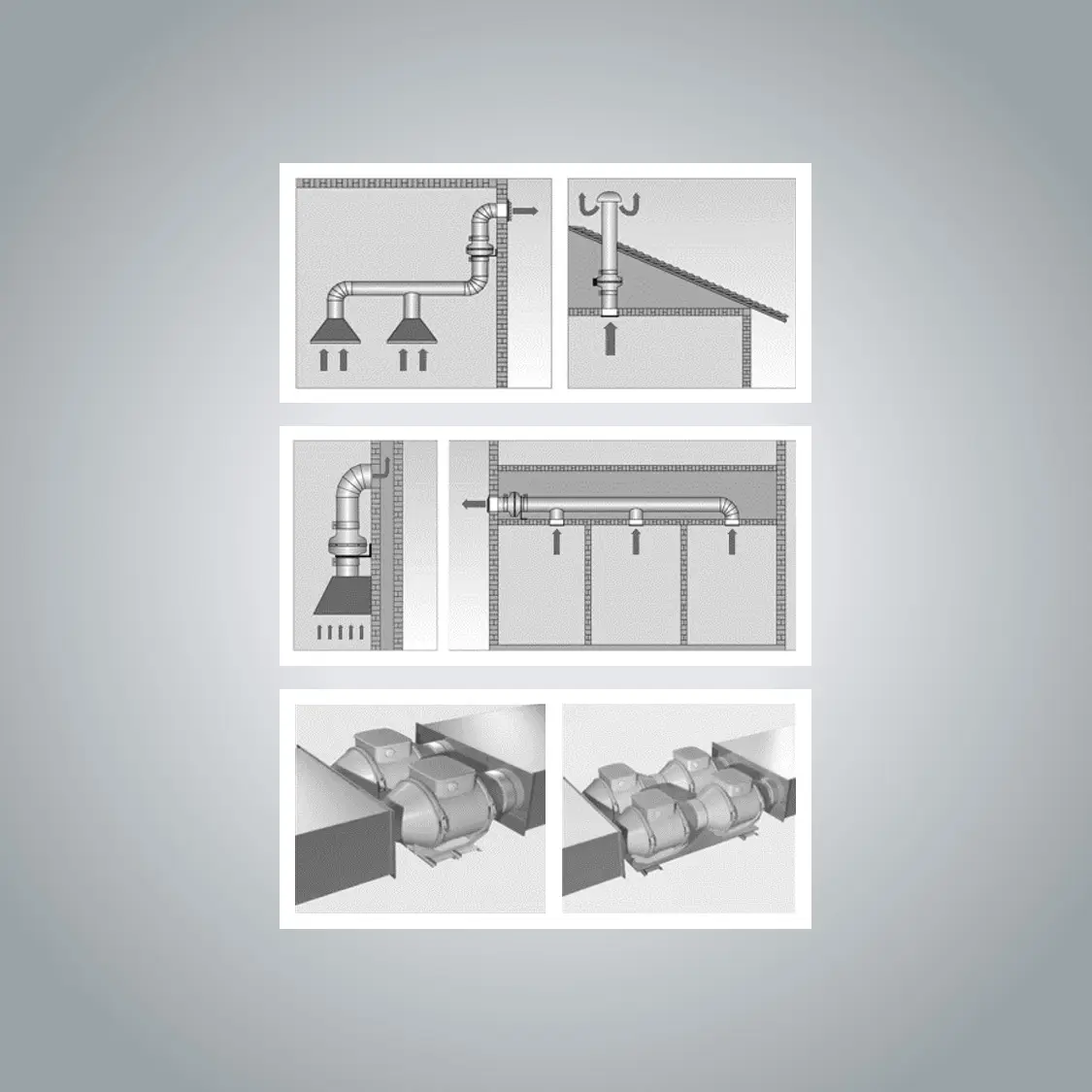

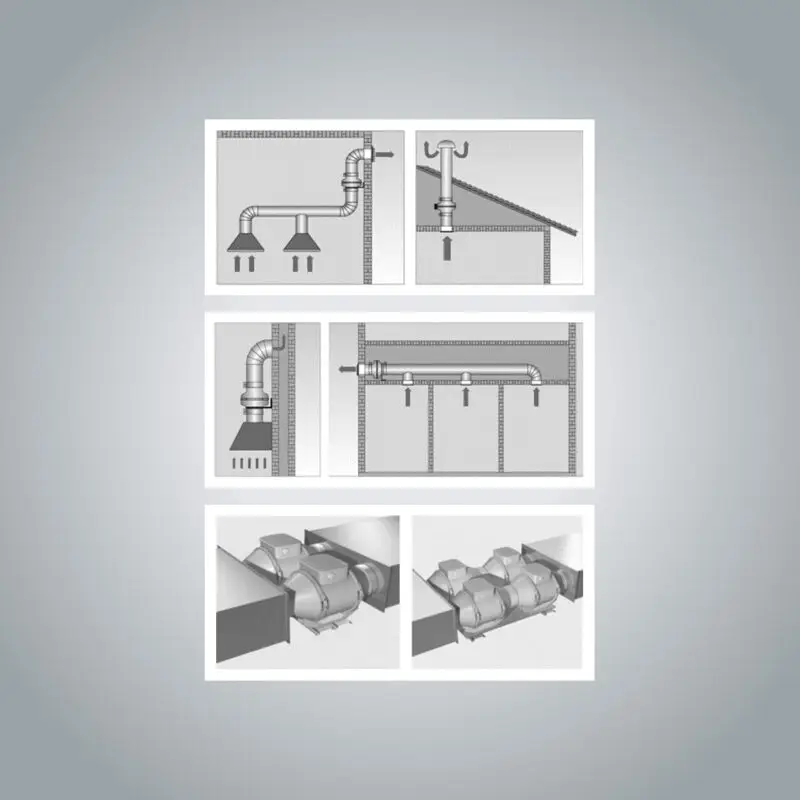

Typical Application

• Multiple toilet rooms
• Large Bathroom / multiple shower-rooms
• Laundry / Utility room

Versions

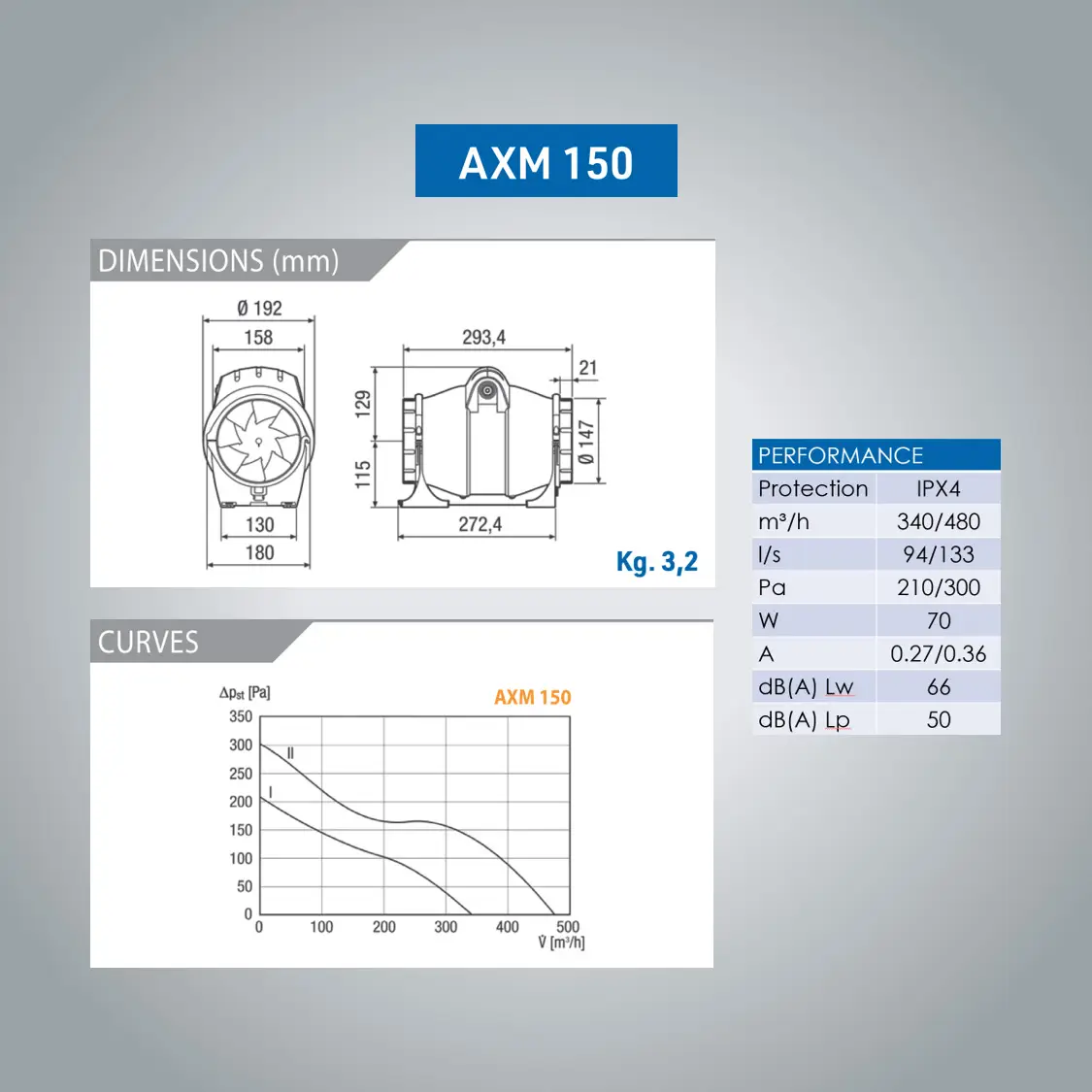

• AXM 150 – Duct – 150mm, 2-step speed

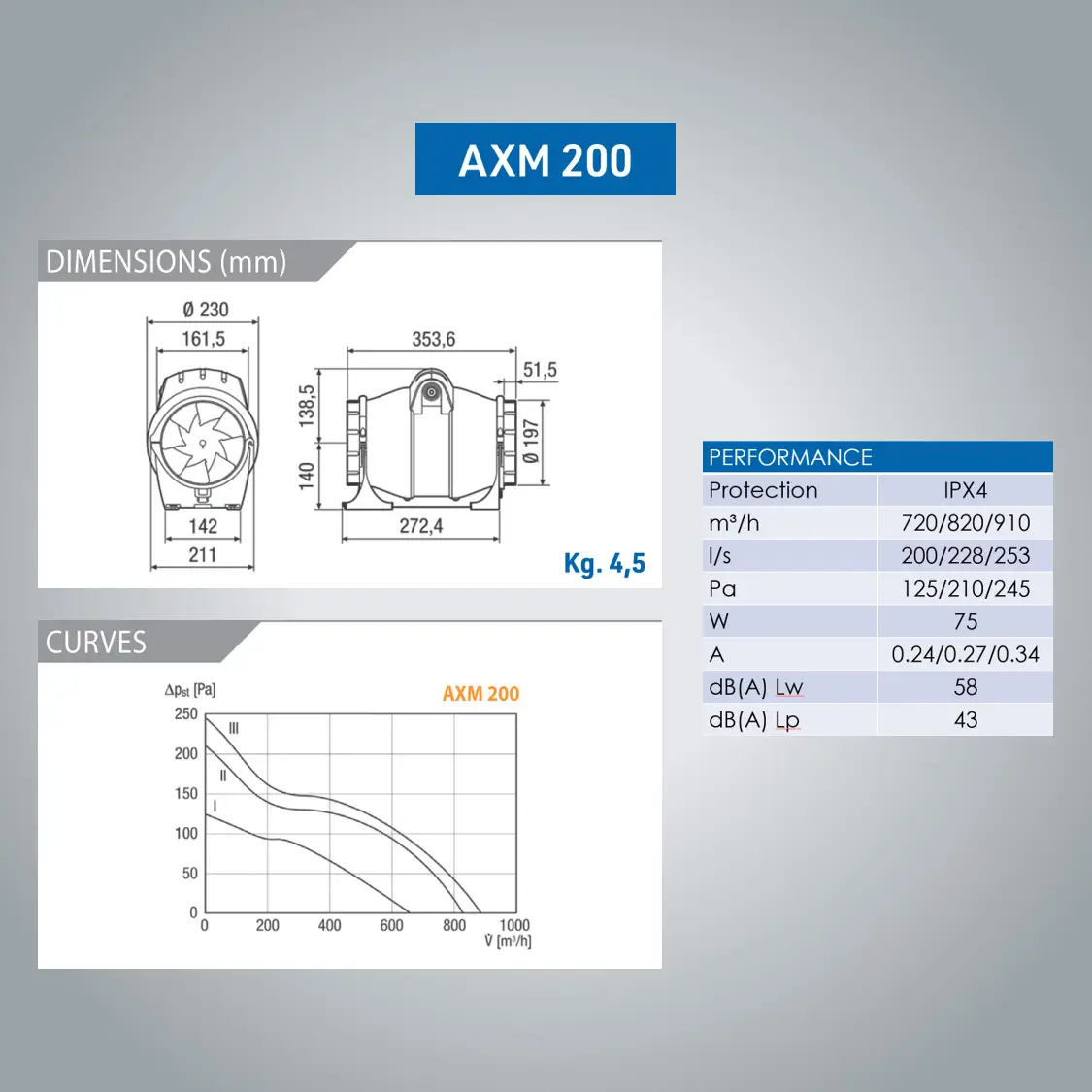

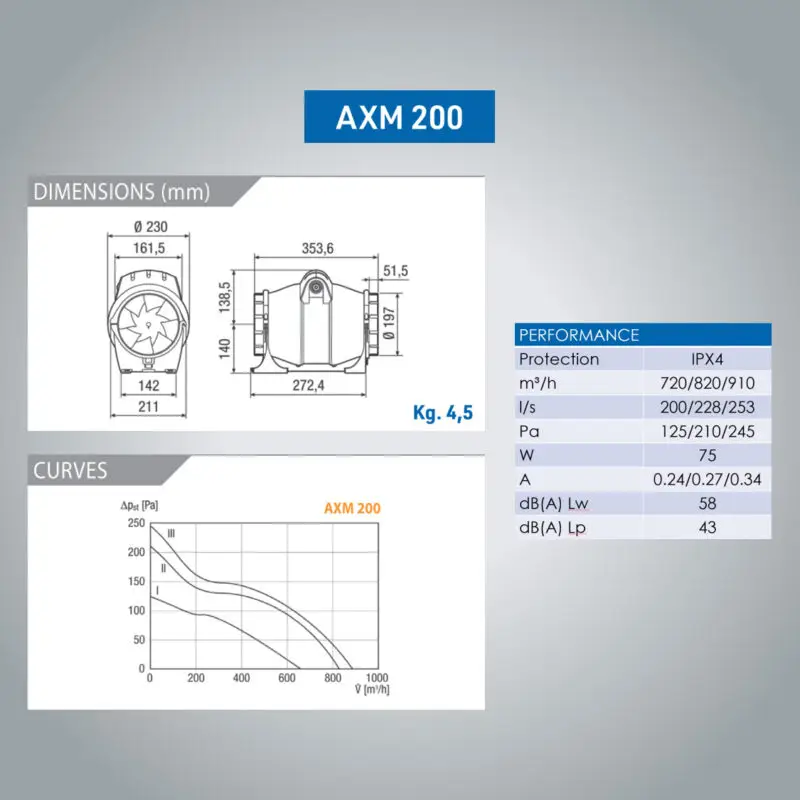

• AXM 200 – Duct – 200mm, 3-step speed

Performance (150mm / 200mm)

• Airflow: 480 / 910 m³/h (max.)
• Pressure: 300 / 245 Pa (max.)

In the Box

• Fan unit incl. terminal box
• User manual

Typically required for installation

• Duct Ø100/200mm
• Wall switch or controller
• Outdoor grill/ Trade seal*

*Check with local council for acceptability
