Blauberg Freshbox 200

Documentation
Freshbox 200 WIFI – Datasheet
Freshbox 200 WIFI – Manual

Description

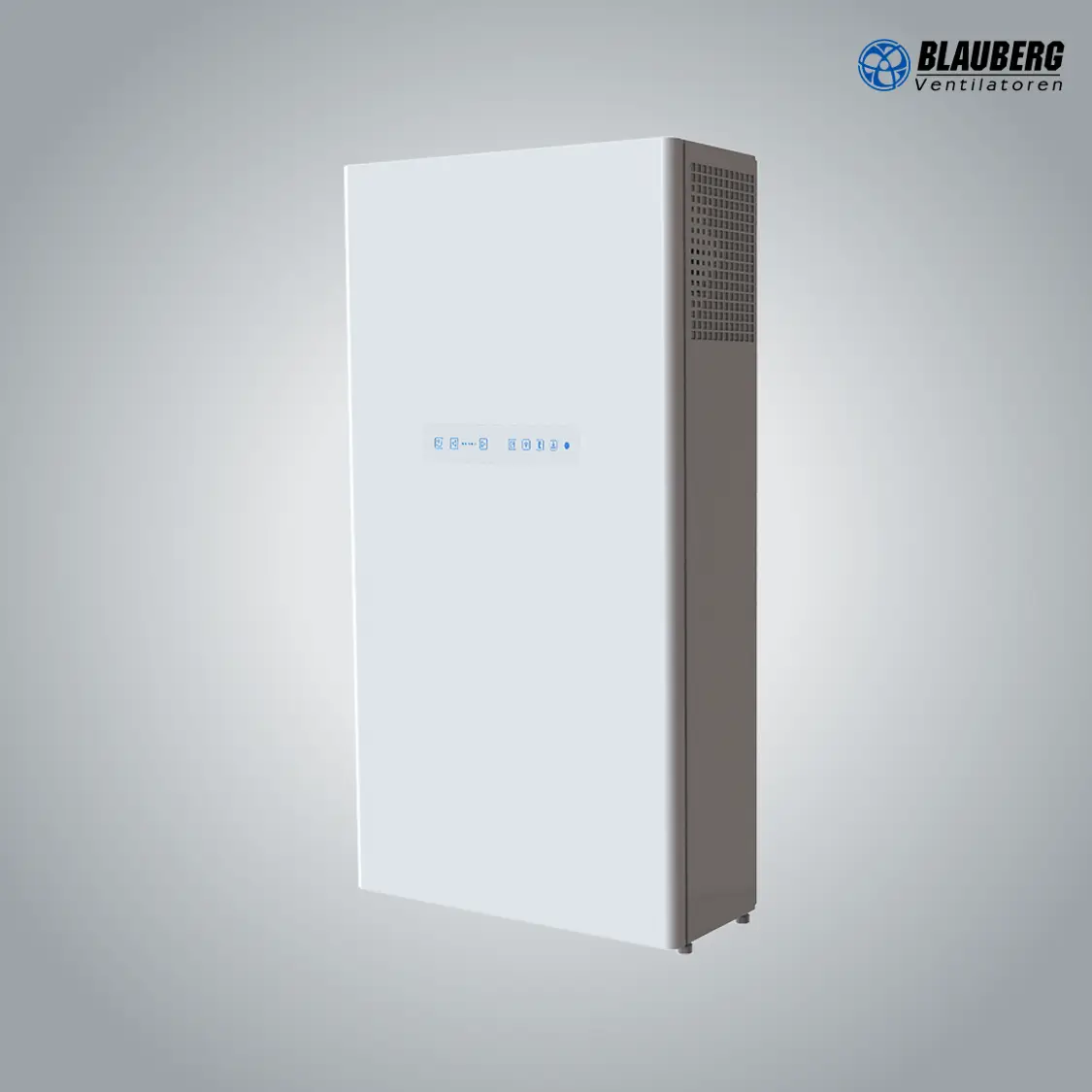

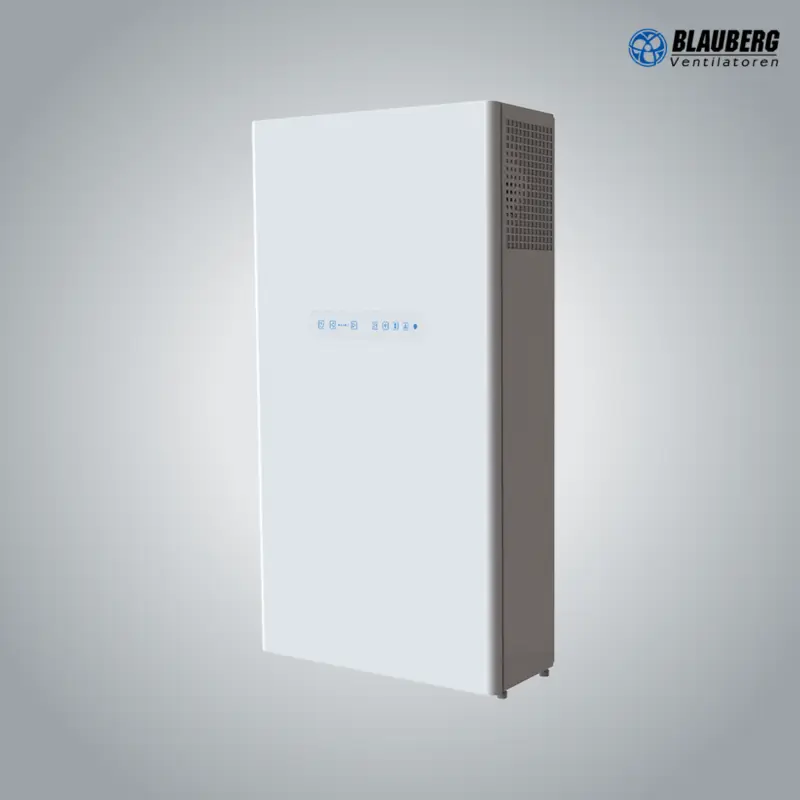

Freshbox 200 WiFi is a German-made, single-room air handling unit, ideal for tight spaces, retrofit projects or semi-commercial solutions, where reliability and efficiency counts.

Highlights

• Super-efficient solution for supply and exhaust ventilation
• Easy installation – Compact size
• Low-energy EC motors
• Silent operation
• Controlled by Android or iOS smartphone or tablet over Wi-Fi
• 2-year warrant

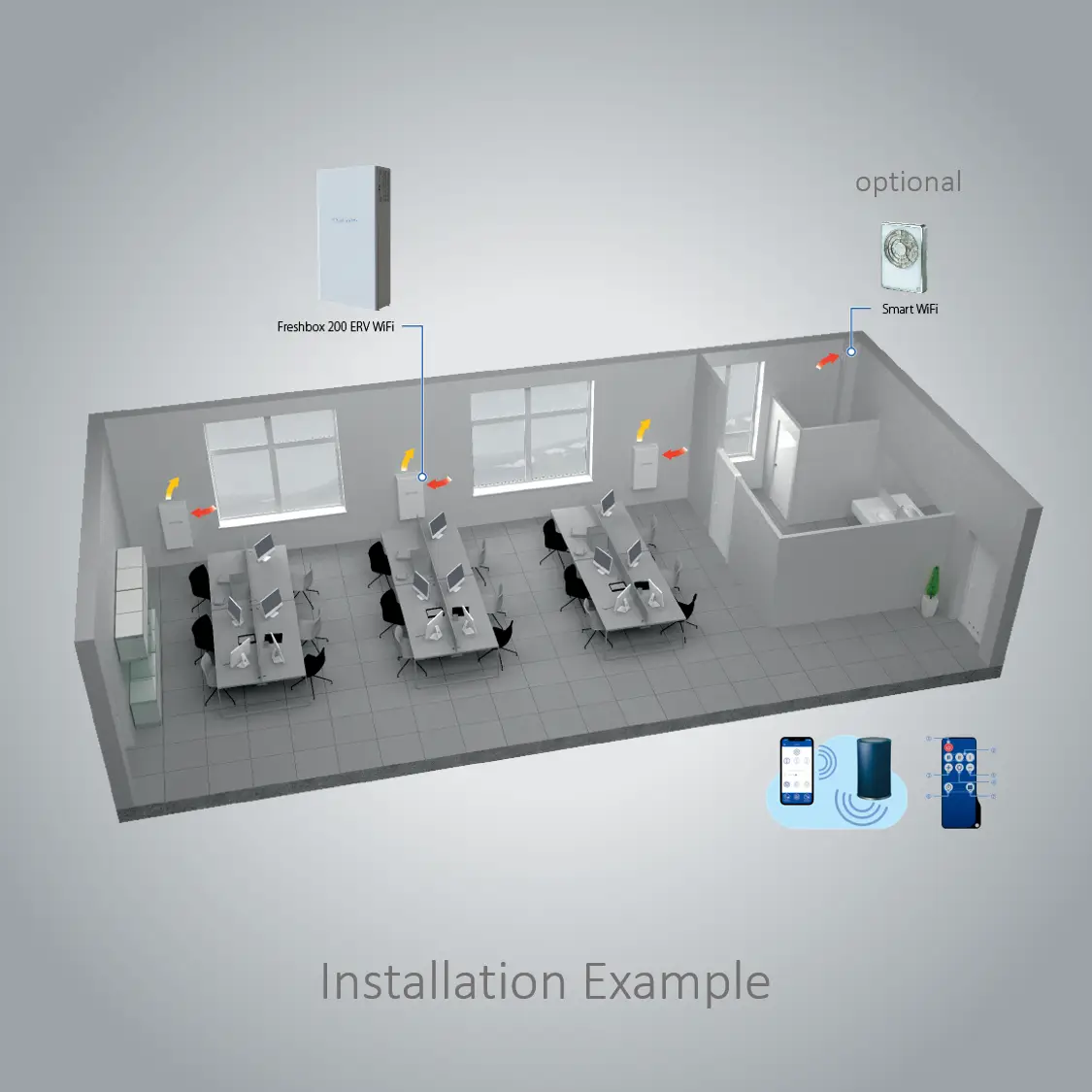

Typical Application

• Living areas with tight or no ceiling space
• Retrofit projects
• Office rooms
• Training Rooms / Schools

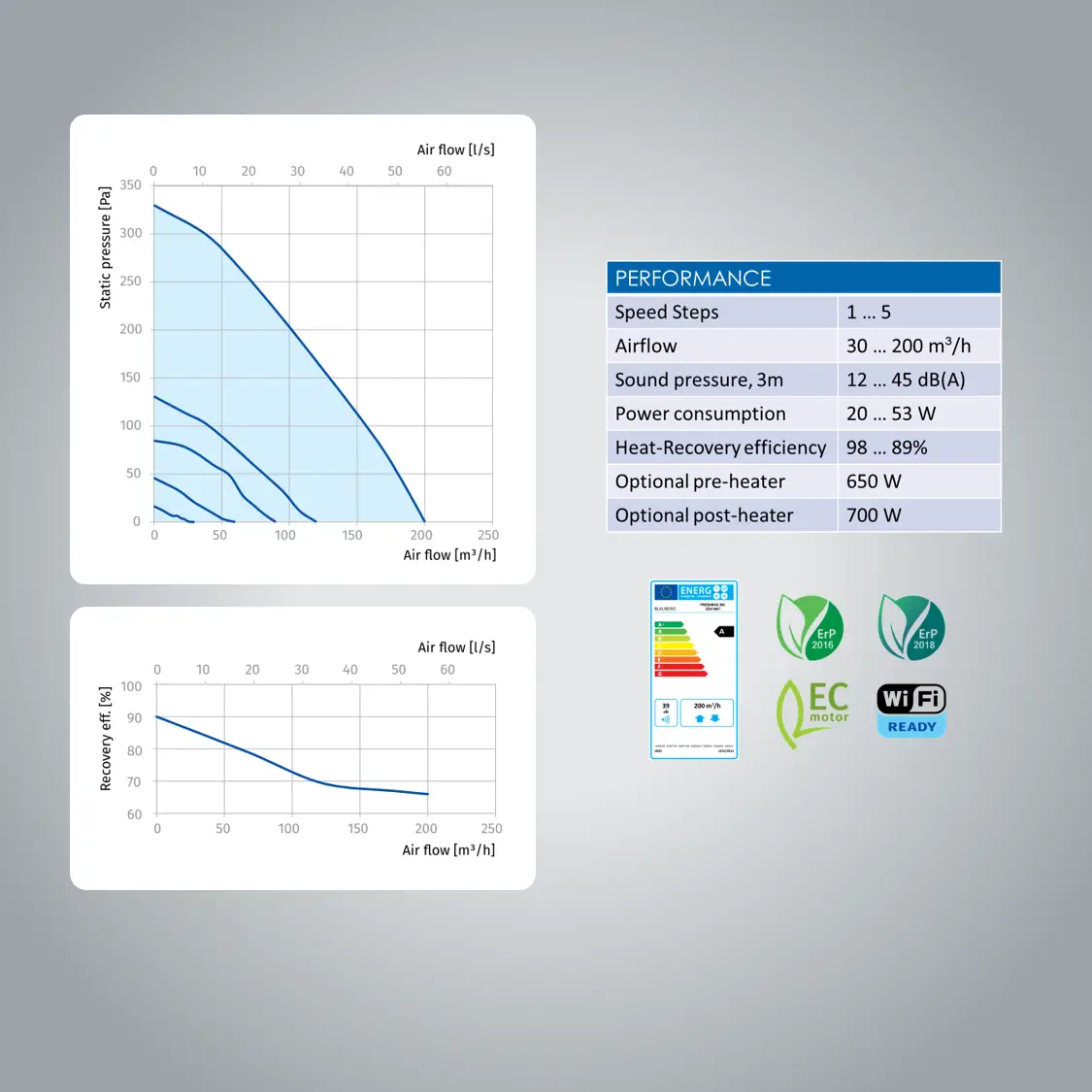

Performance

• Airflow: 200 m³/h (max.)
• Pressure: 325 Pa (max.)
• Example:
  Duty point: 160m³/h @ 90Pa
  Room: 100m² with 2.6m ceiling -> 0.62 air changes per hour

Versions

• BLA-FRE-200-WiFi
  Standard Version with WiFi
• BLA-FRE-E1-200-WiFi

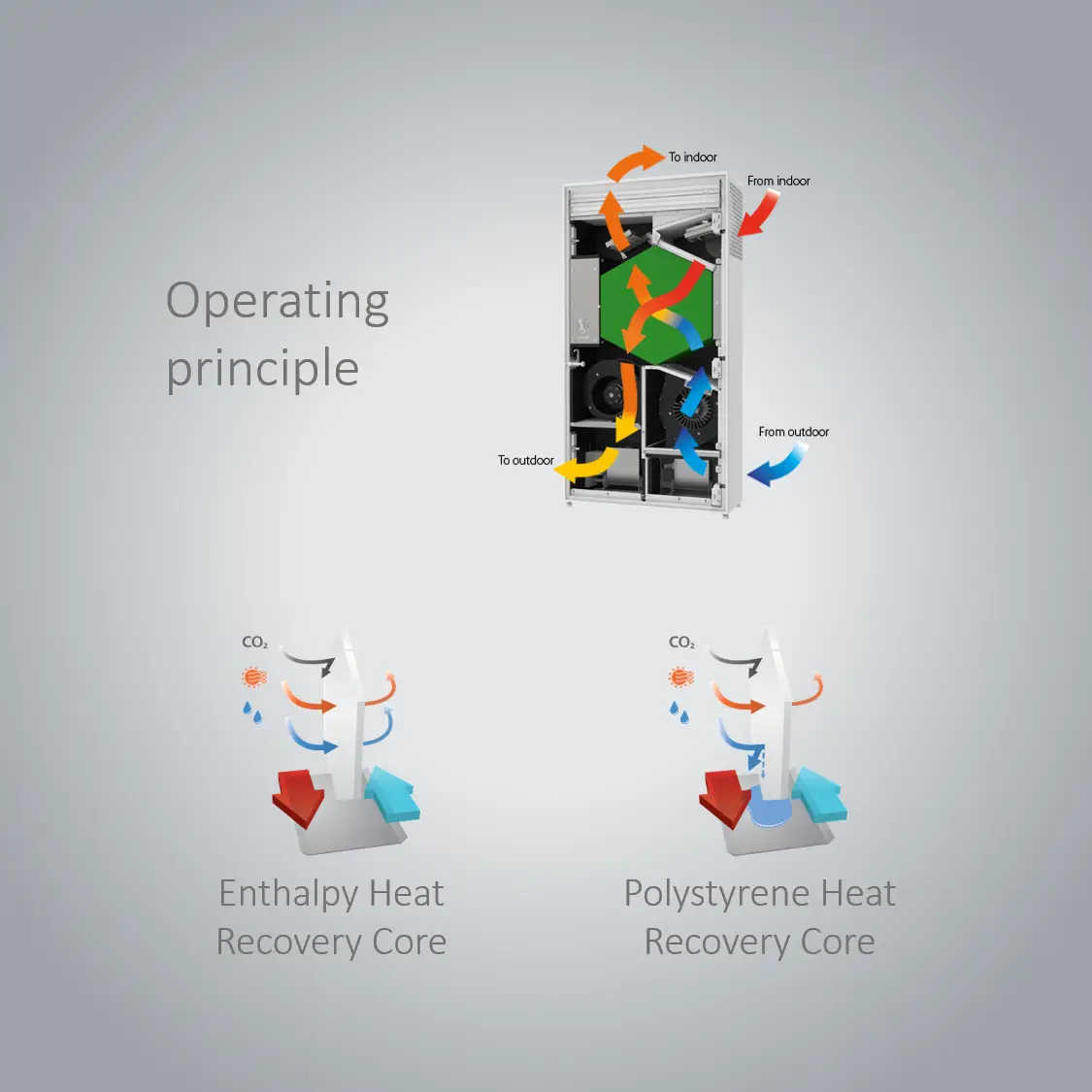

  Version with WiFi and Post-Heater (700W) and Enthalpy Heat Exchanger
• BLA-FRE-E2-200-WiFi
  Version with WiFi, Pre-heater (650W) and Post-Heater (700W) and Enthalpy Heat Exchanger

In the Box

• MHRV unit
• Remote Control
• Socket Key (to open unit for maintenance)
• Wall-mounting template
• User manual

Typically required for wall installation

• Tools and consumables (e.g. duct tape and screws)
• Duct Ø100mm (trough-wall)

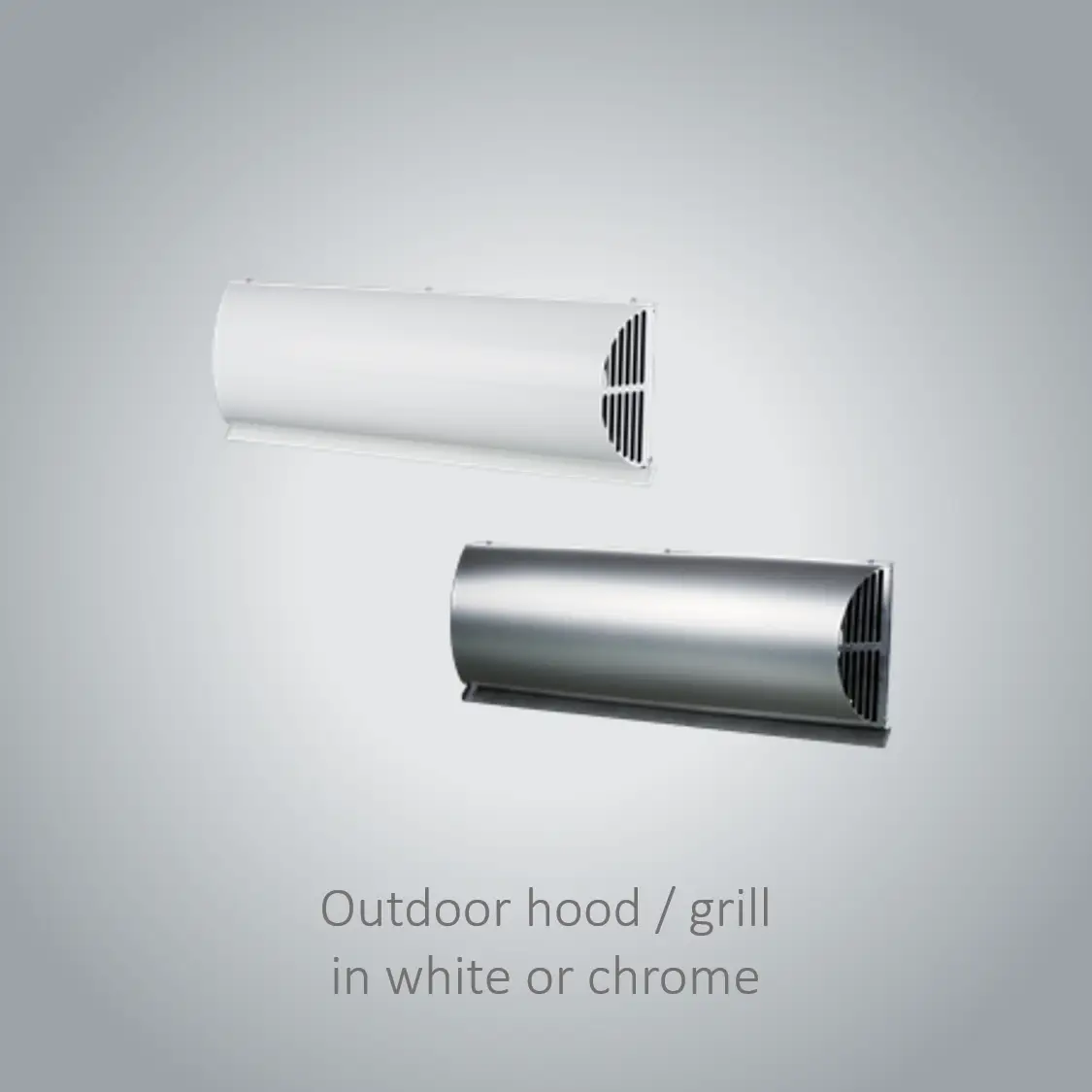

• Outdoor grill/ Trade seal*
  (See suitable cowling: BLA-FRE-MS100*)

*Check with local council for acceptability
