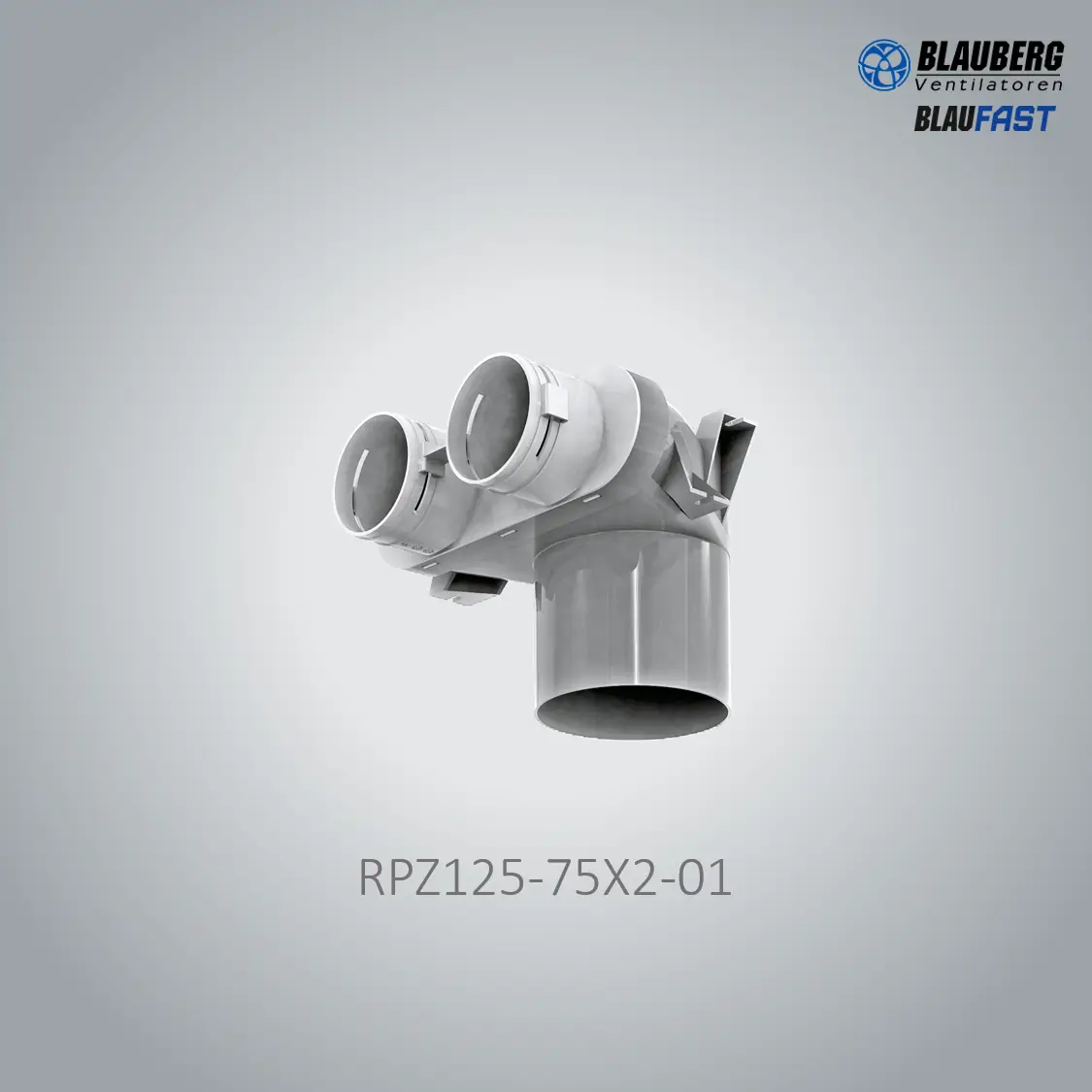

BlauFast 75 – RPZ125/75×2 Dropper

Documentation
Blaufast Catalogue
Blaufast Installation Guide

Description

For ceiling mounting to connect 125mm ventilation vents.

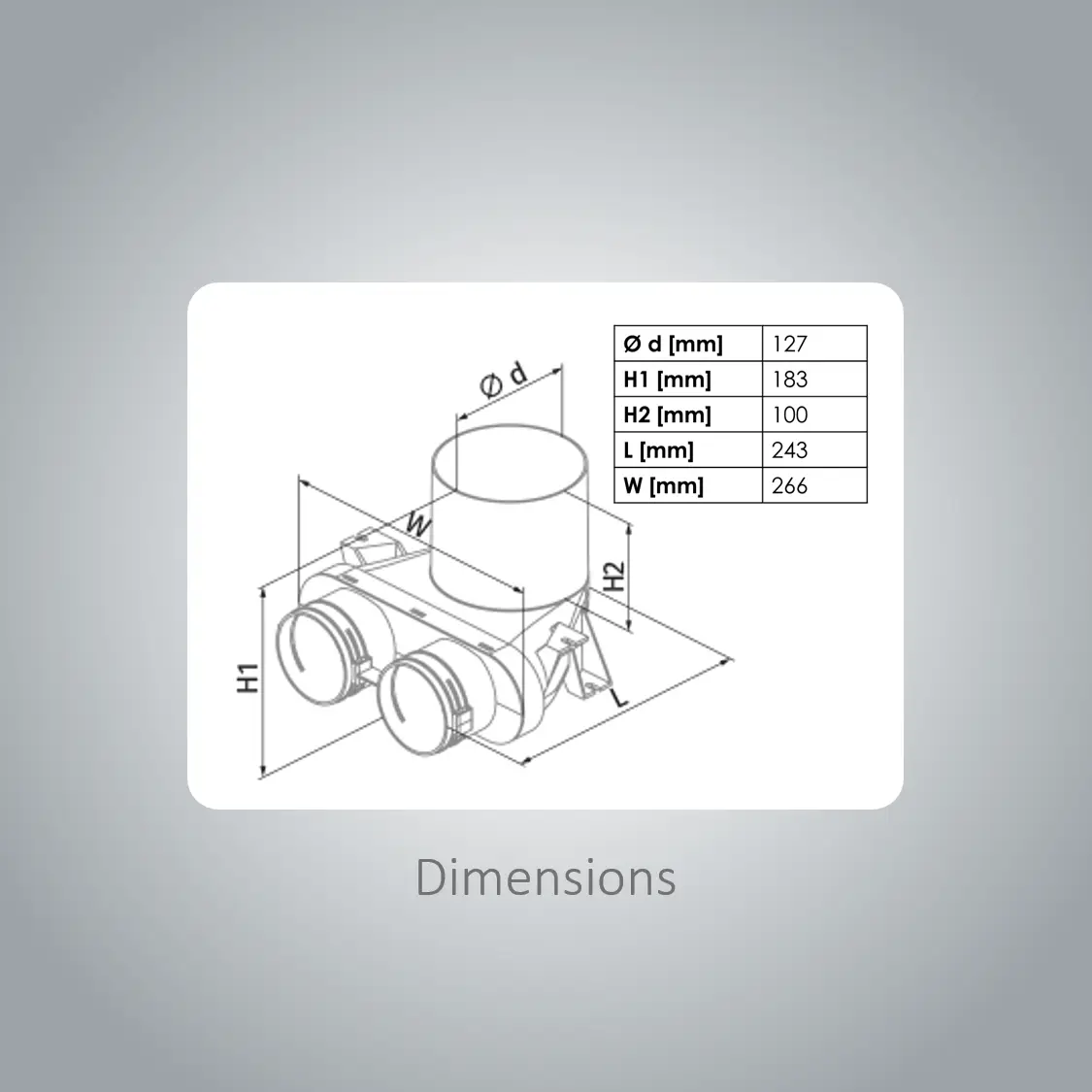

• Connection diameters: 2x 75 mm and 1x 125mm
• 75mm Ducts are fastened with BlauFast S locks (included in the delivery)
• Fit duct with BlauFast RL 75 slip-on seal to retain airtightness class C (purchased separately)
• Made of polypropylene (PP) with thermoplastic elastomer (SEBS)
• Operating temperature: from -20 to +60° C
• Unused opening must be capped with BlauFast RFP75 – Flange Cap (purchased separately)

Tip: For dropper extension we recommend to use standard 125mm PVC duct.

About BlauFast modular system

FLEXIBLE SOLUTIONS FOR EFFICIENT VENTILATION
The modular air distribution system BlauFast is based on compact corrugated air ducts with the diameter of 75 and 90 mm made of impact-resistant plastic.
Energy saving ventilation is easy and fast to arrange with BlauFast. It is applied in houses and apartments and is suitable both for brand new construction or renovation. Modular BlauFast system saves living space and offers nonstandard design solutions.

ENERGY SAVING VENTILATION FOR YOUR HOUSE
The BlauFast system is designed for joint operation with air handling units.
An air handling unit enables air transportation, filtration and heat recovery.
The BlauFast system enables correct air distribution between the rooms.

MORE COMFORT, LESS COST
In contrast to standard ventilation system to be mounted exclusively in the ceiling or walls the BlauFast system has wider mounting possibilities. The air ducts are suitable for ceiling, floor or wall mounting. The assembly is easy and cost-effective.
