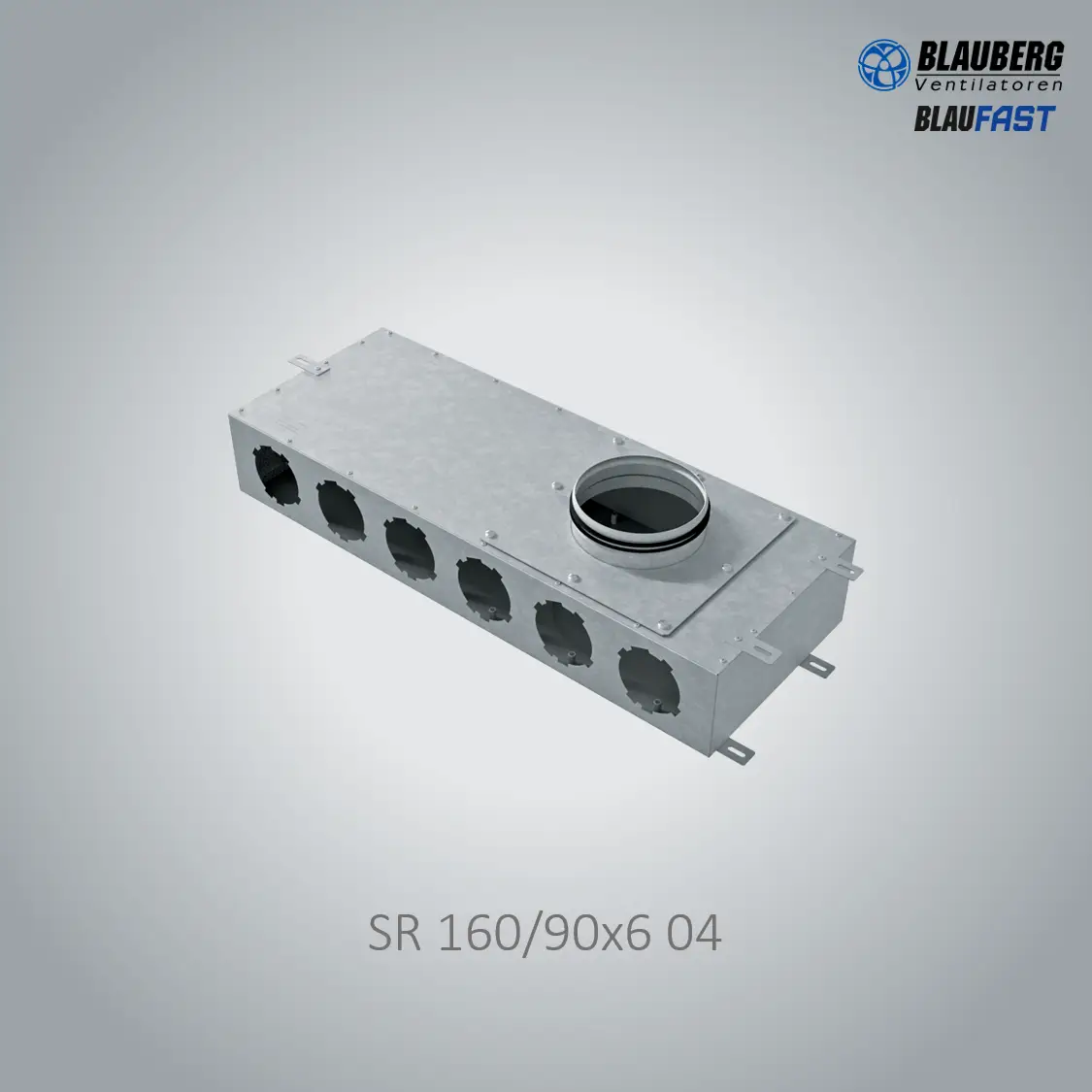

BlauFast 90 – SR160/90×6-04 Distribution Box

Description
For distribution of air from the ventilation unit through the air ducts.

• Made of Aluzinc coated steel
• Internally sound-insulated

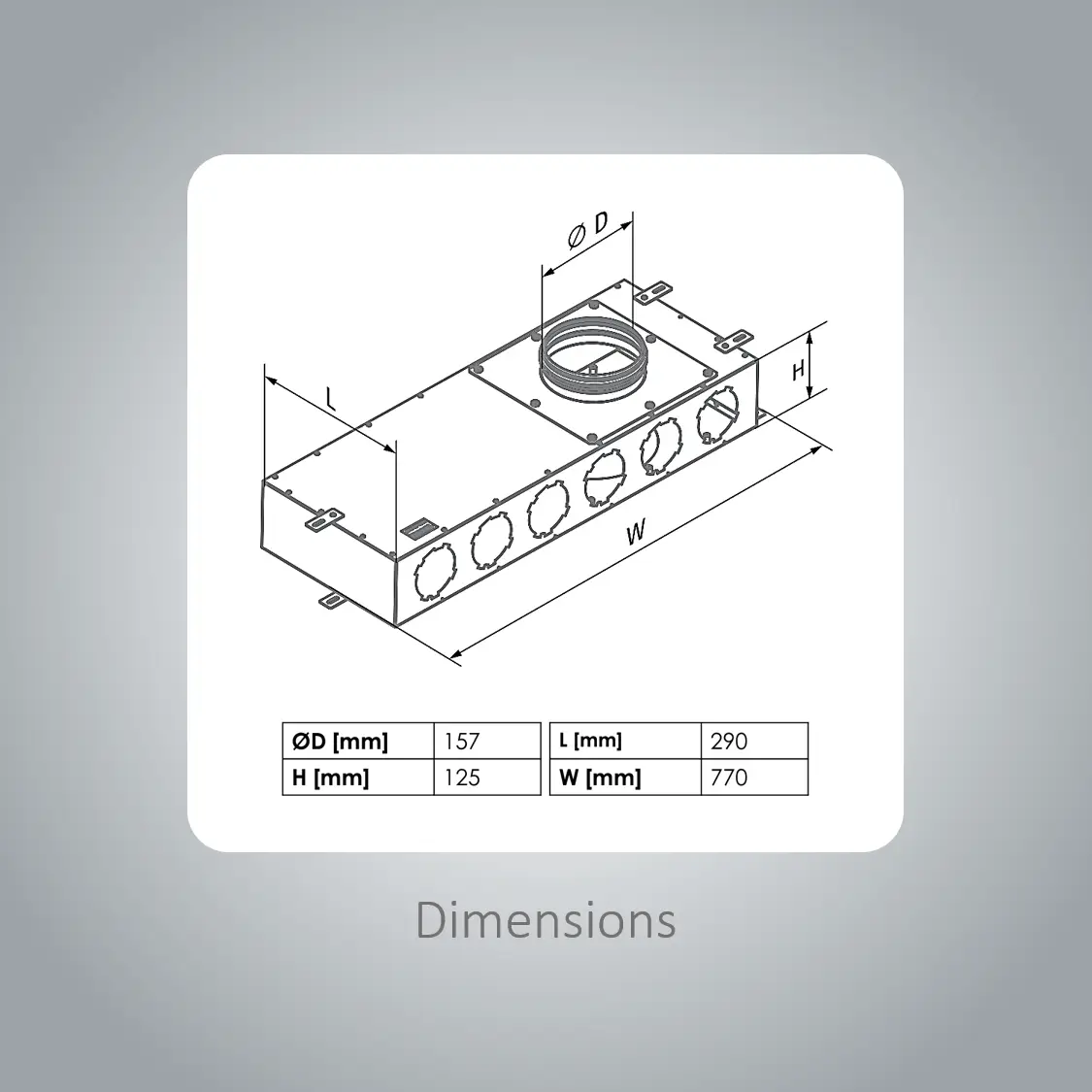

1x Ø160mm

• The air duct flange is rubber sealed

6x Ø90mm

• Spigot(s) can be changed to flat side
• Air duct connection through matching flanges BlauFast RKF
• Unused openings must be capped with BlauFast RSP90 – Box Cap (purchased separately)

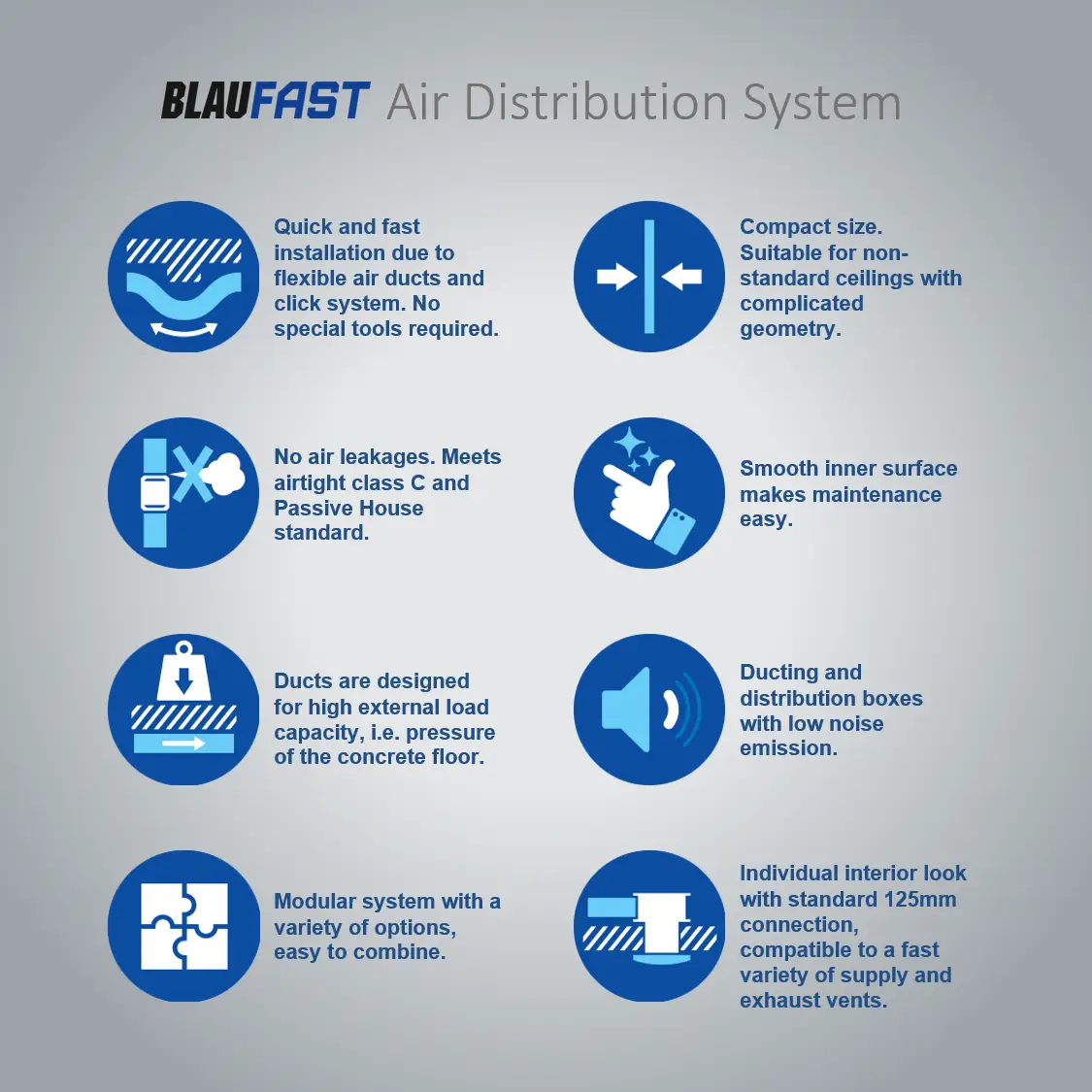

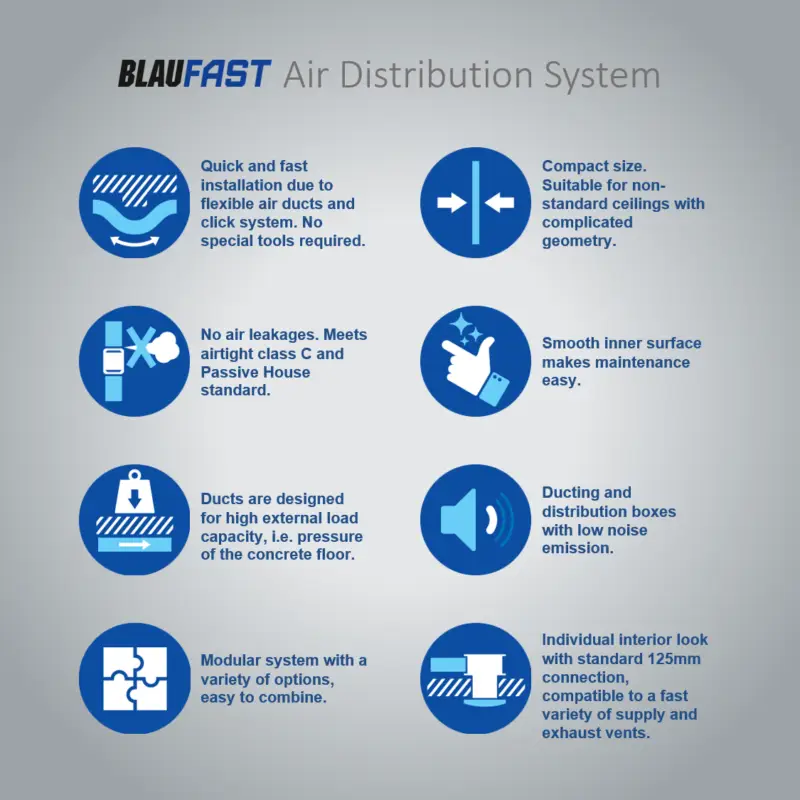

About BlauFast modular system

FLEXIBLE SOLUTIONS FOR EFFICIENT VENTILATION

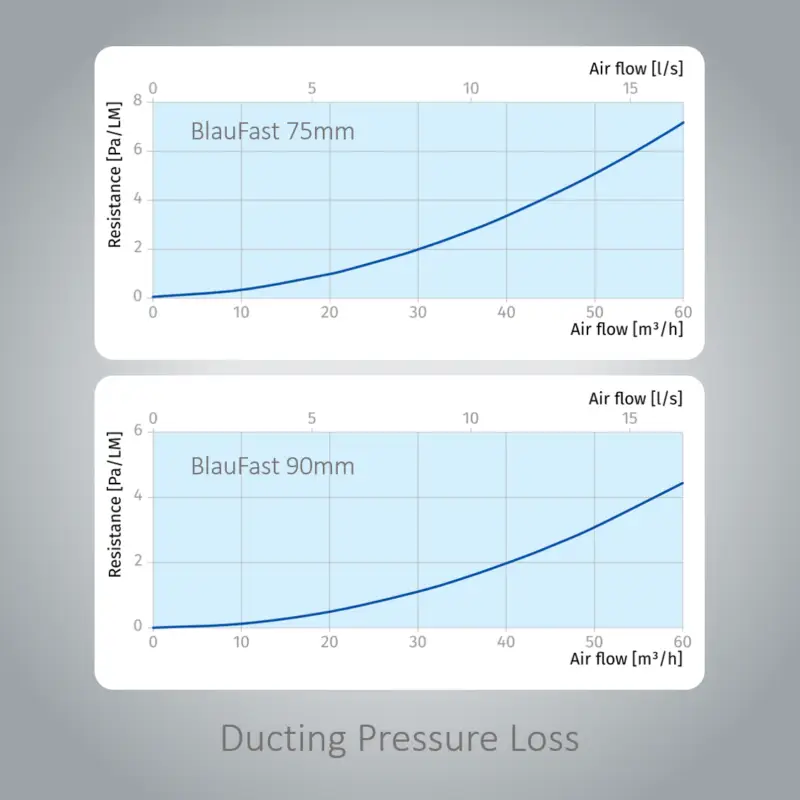

The modular air distribution system BlauFast is based on compact corrugated air ducts with the diameter of 75 and 90 mm made of impact-resistant plastic.
Energy saving ventilation is easy and fast to arrange with BlauFast. It is applied in houses and apartments and is suitable both for brand new construction or renovation. Modular BlauFast system saves living space and offers nonstandard design solutions.

ENERGY SAVING VENTILATION FOR YOUR HOUSE

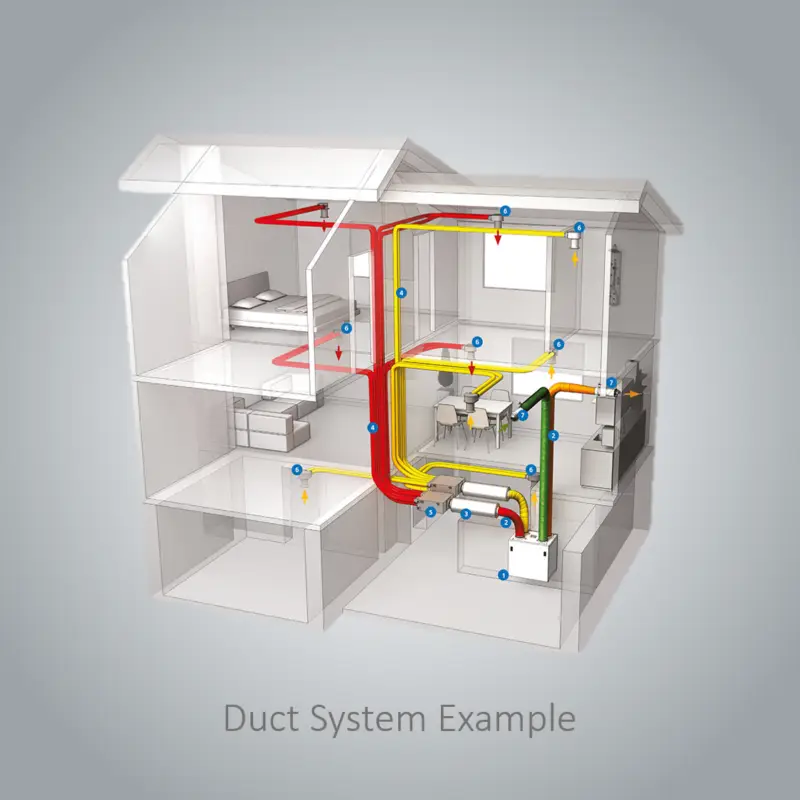

The BlauFast system is designed for joint operation with air handling units.
An air handling unit enables air transportation, filtration and heat recovery.
The BlauFast system enables correct air distribution between the rooms.

MORE COMFORT, LESS COST

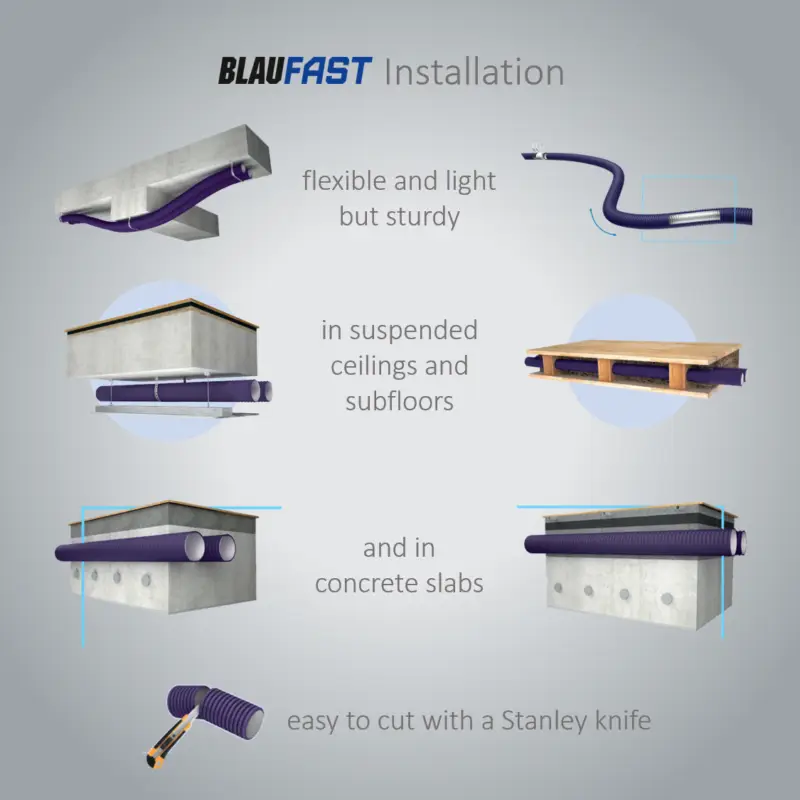

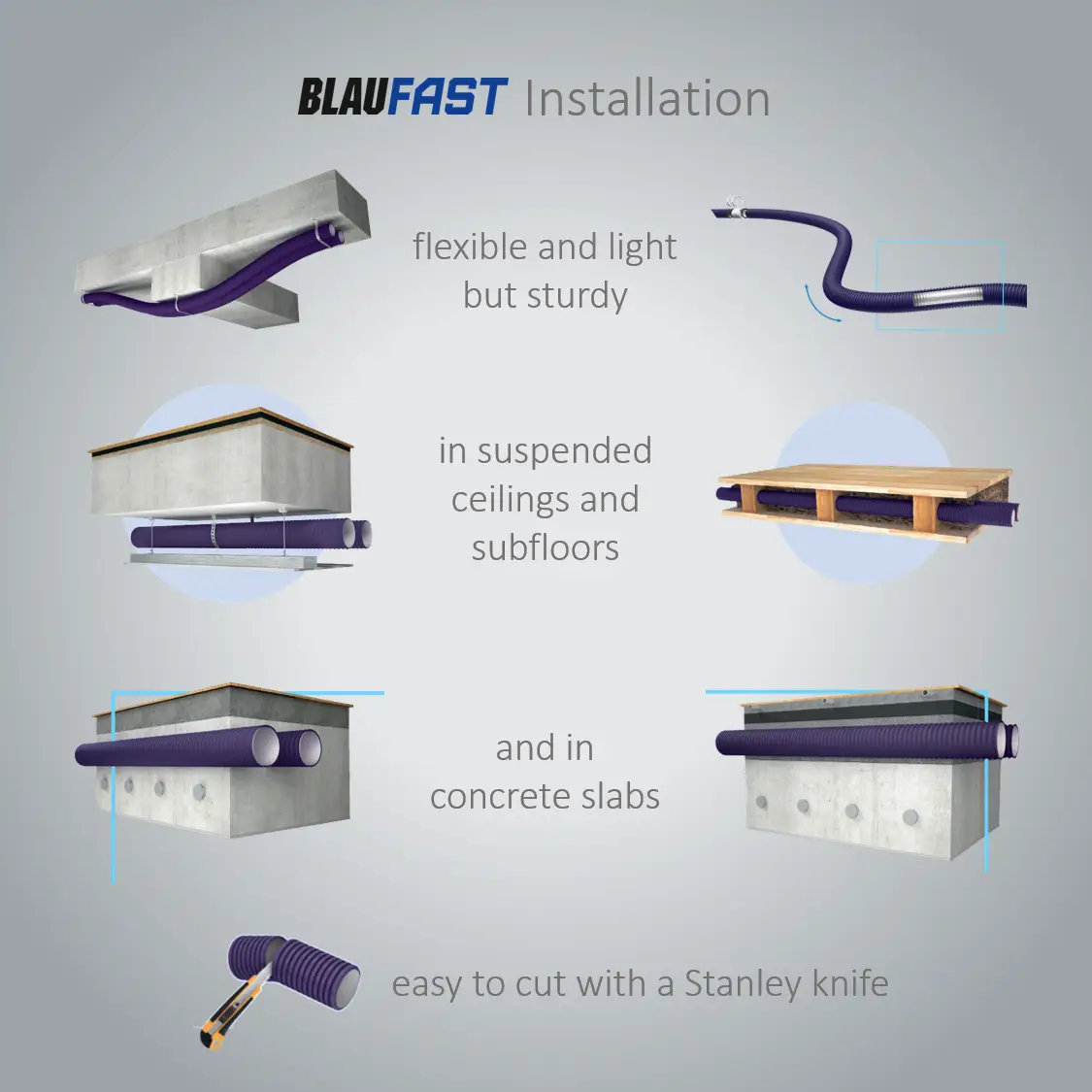

In contrast to standard ventilation system to be mounted exclusively in the ceiling or walls the BlauFast system has wider mounting possibilities. The air ducts are suitable for ceiling, floor or wall mounting. The assembly is easy and cost-effective.
