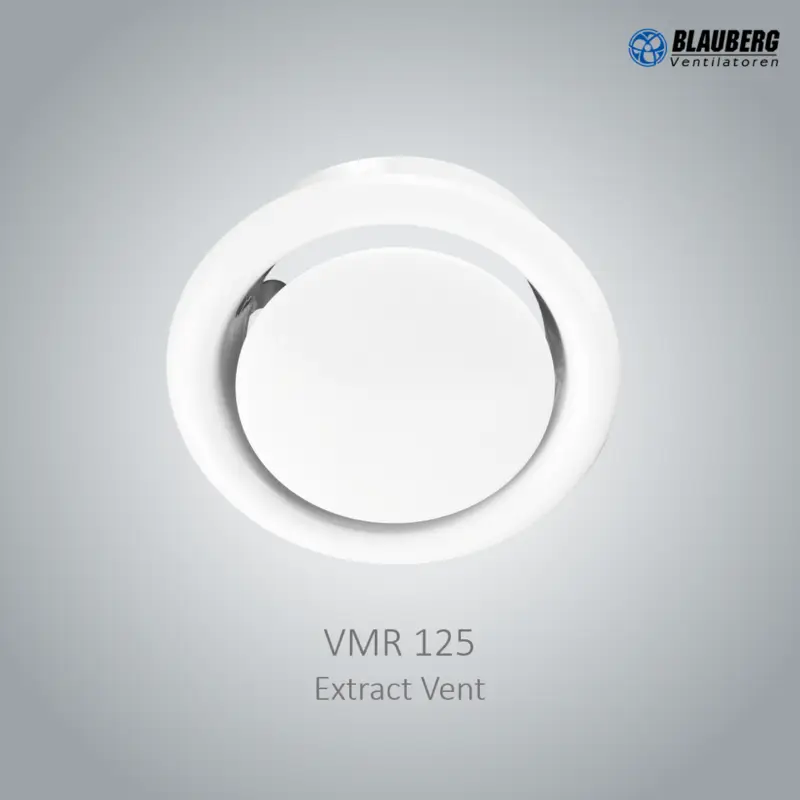

BlauFast Air Vent VMR125

Description

Extract vent for installation into wall- or ceiling mounted connectors or ducts.

• For Extract Air only
• For 125mm connectors or ducts (e.g. BlauFast RPZ125)
• Made of metal with white polymer coating.
• Smooth and stepless air flow regulation.

NZ Installation advice in combination with BlauFast RPZ125
Use a standard 125mm PVC duct to extend the dropper. Finish your GIB board around the duct. Cut off excess duct. Fit vent into the 125mm PVC duct and secure duct and vent with an adhesive PVC sealant.

About BlauFast modular system

FLEXIBLE SOLUTIONS FOR EFFICIENT VENTILATION
The modular air distribution system BlauFast is based on compact corrugated air ducts with the diameter of 75 and 90 mm made of impact-resistant plastic.
Energy saving ventilation is easy and fast to arrange with BlauFast. It is applied in houses and apartments and is suitable both for brand new construction or renovation. Modular BlauFast system saves living space and offers nonstandard design solutions.

ENERGY SAVING VENTILATION FOR YOUR HOUSE
The BlauFast system is designed for joint operation with air handling units.
An air handling unit enables air transportation, filtration and heat recovery.
The BlauFast system enables correct air distribution between the rooms.

MORE COMFORT, LESS COST
In contrast to standard ventilation system to be mounted exclusively in the ceiling or walls the BlauFast system has wider mounting possibilities. The air ducts are suitable for ceiling, floor or wall mounting. The assembly is easy and cost-effective.
