Elicent Ecowind

Documentation
Elicent Ecowind Datasheet

Description

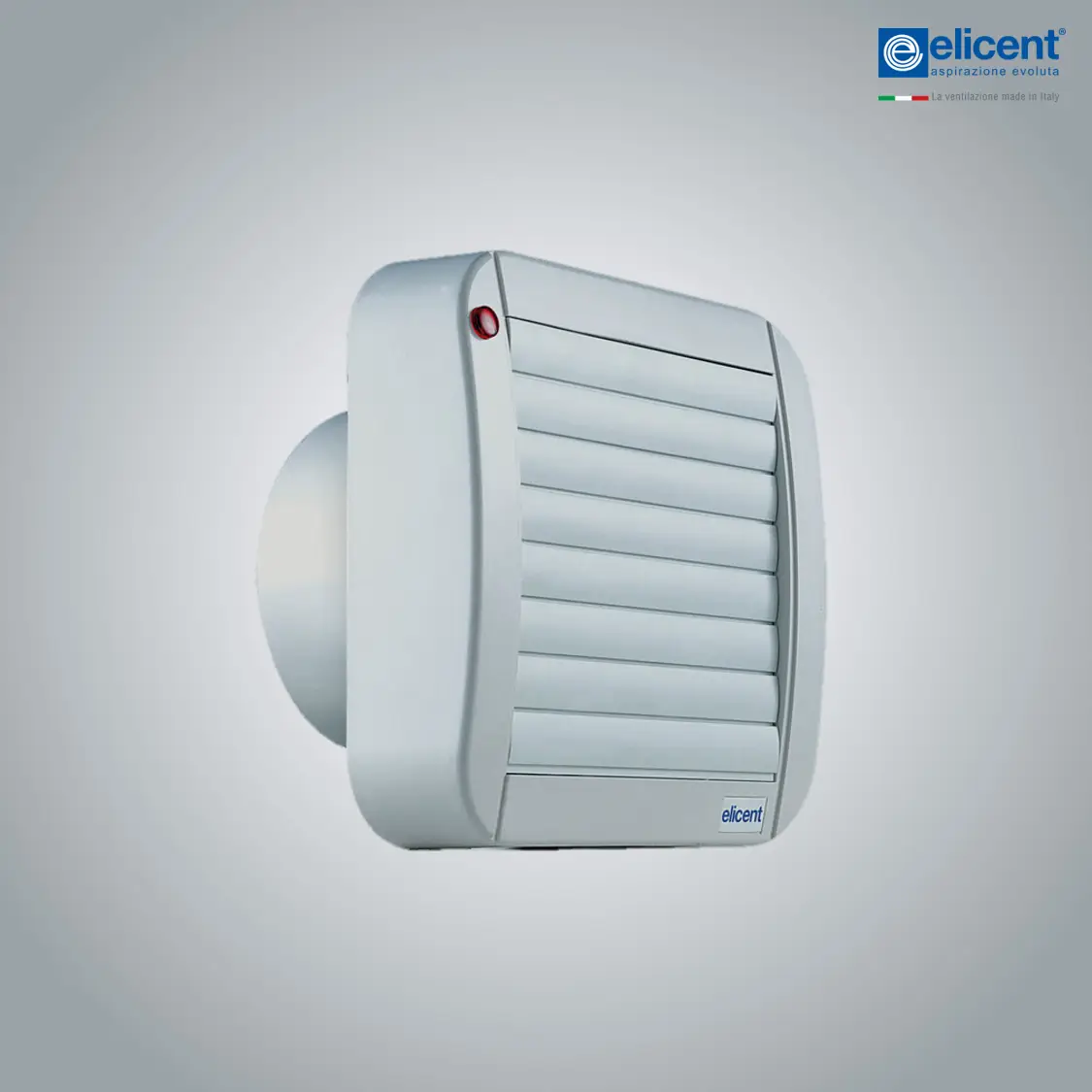

ECOWIND is a series of axial fans suitable for window installation provided with automatic shutters.
Suitable to exhaust air directly to the outside or into a short length ducting.

Highlights

• Automatic shutter
• Axial duct fan Ø 100/120/150 mm

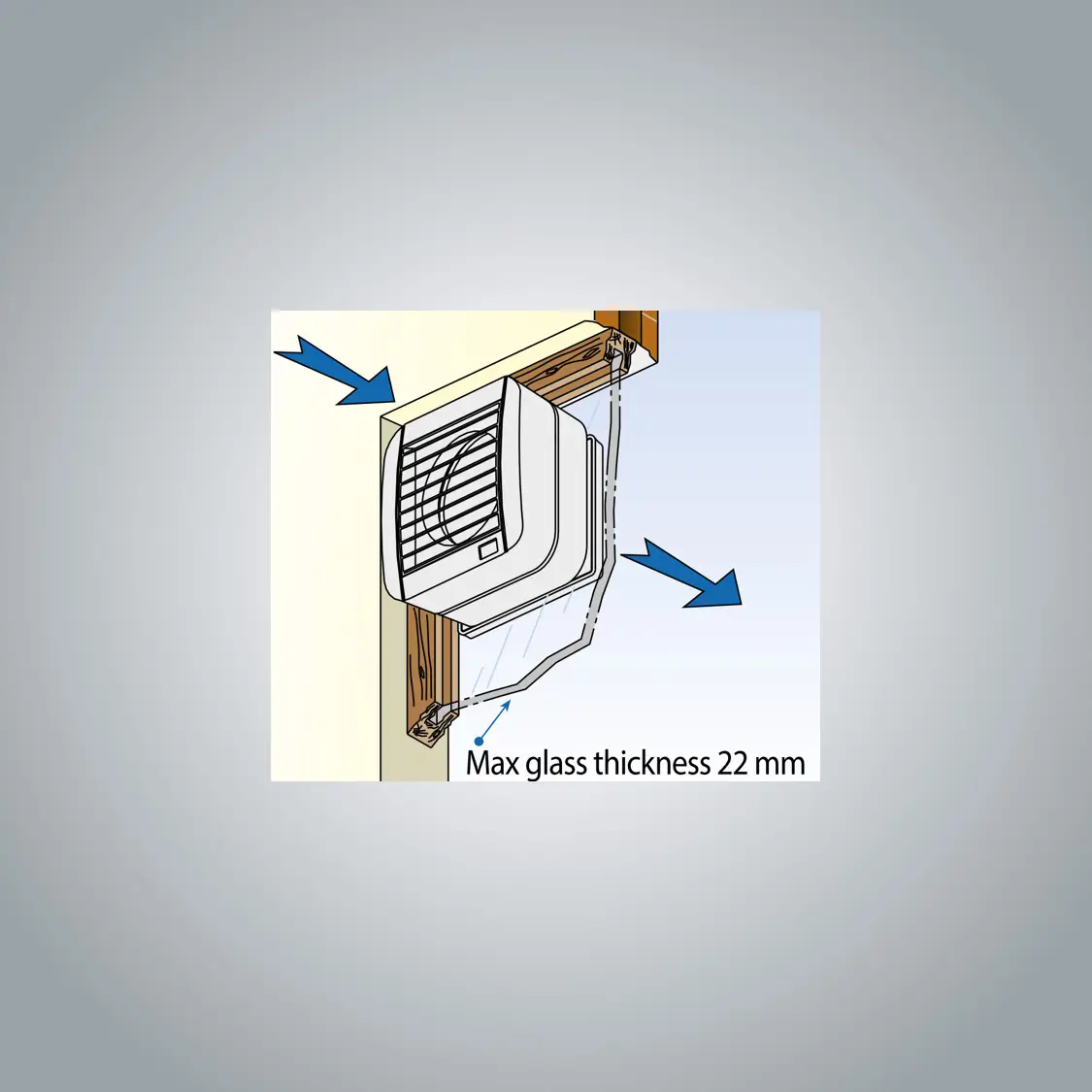

• Window mounted
• Window installation kit included
• High airflow (up to 260m³/h)
• For duct length up to 3m
• Meets G4 and Healthy Home Standard
• 3-year warranty

?

Typical Application

• Toilet / WC
• Bathroom / Shower-room
• Laundry / Utility room

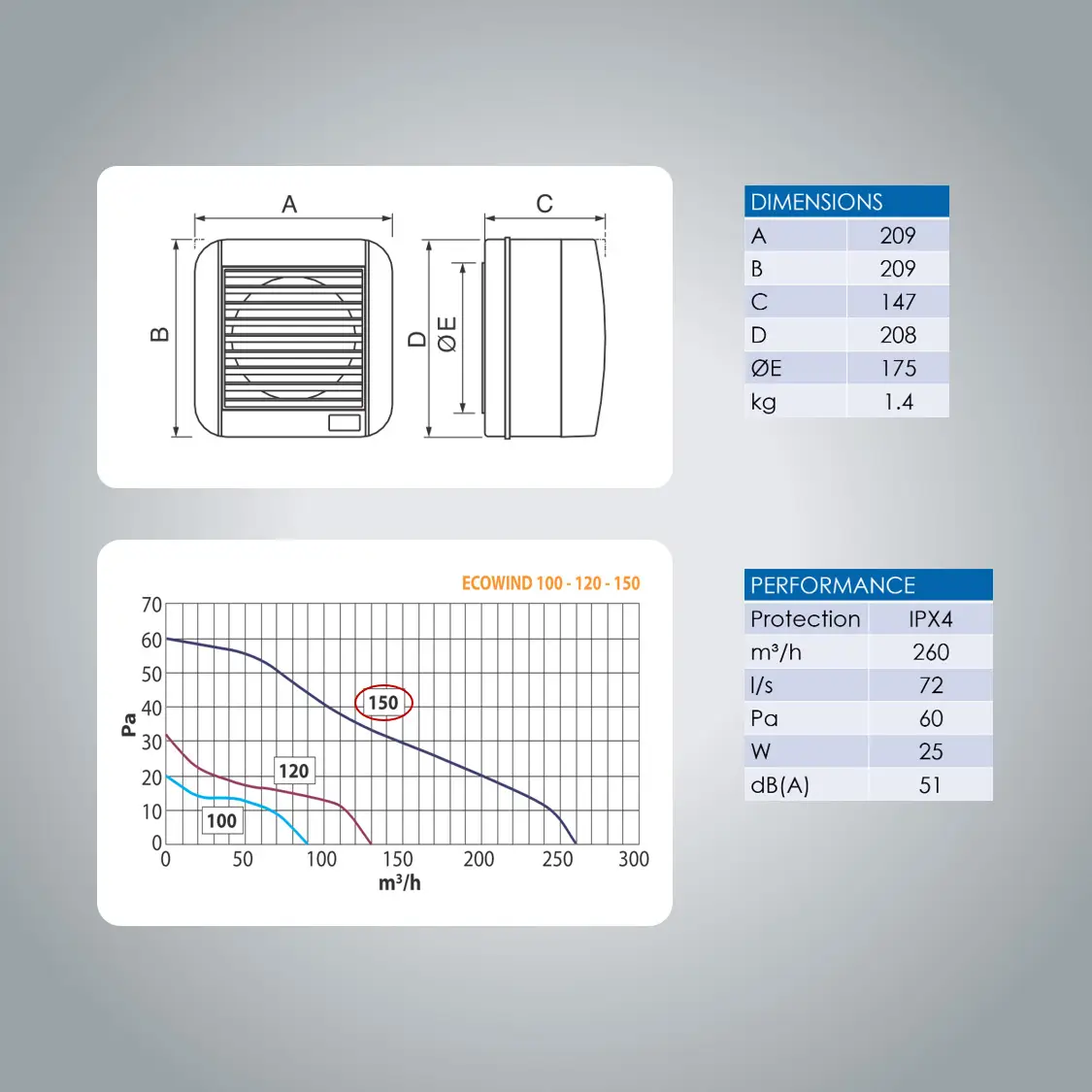

Performance

• Airflow: 260 m³/h (max.)
• Pressure: 60 Pa (max.)

Versions

• ECOWIND 150 Automatic – Duct – 150mm
• ECOWIND 120 Automatic – Duct – 120mm
• ECOWIND 100 Automatic – Duct – 100mm

In the Box

• Fan unit
• Indoor cover
• Window Installation Kit
• Mounting screws
• User manual

Typically required for wall installation

• Duct Ø100/120/150mm
• Glass cutter (for window installation)
• Outdoor grill/ Trade seal*

*Check with local council for acceptability
