Blauberg Freshbox 100

Documentation
Freshbox 100 WIFI – Datasheet
Freshbox 100 WIFI – Manual
Freshbox 100 WIFI – Smart Home

Description

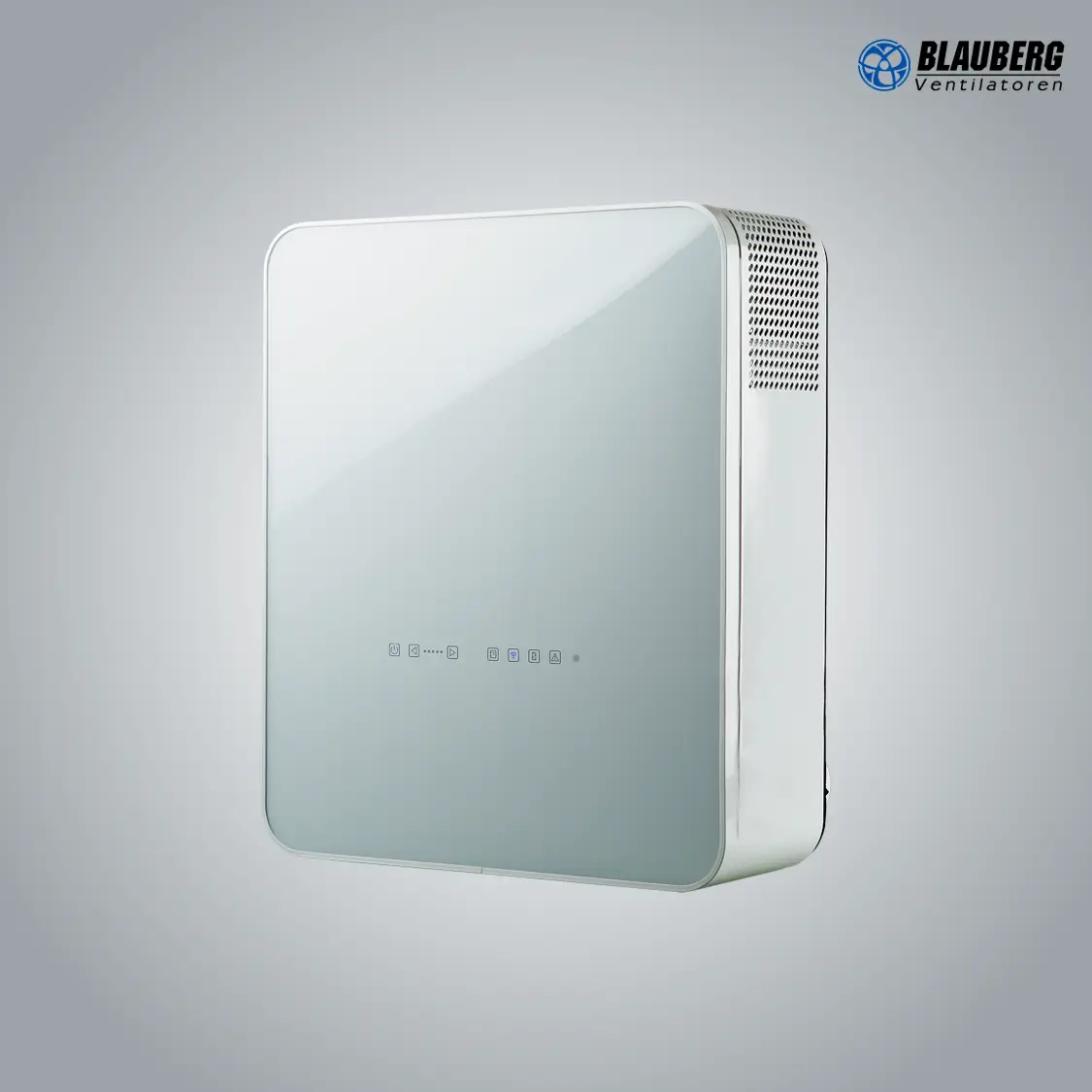

Freshbox 100 WiFi is a German-made, single-room air handling unit, ideal for tight spaces, retrofit projects or semi-commercial solutions, where reliability and efficiency counts.

Highlights

• Super-efficient solution for supply and exhaust ventilation
• Easy installation – Compact size
• Low-energy EC motors
• Silent operation
• Controlled by Android or iOS smartphone or tablet over Wi-Fi
• 2-year warranty

Optional

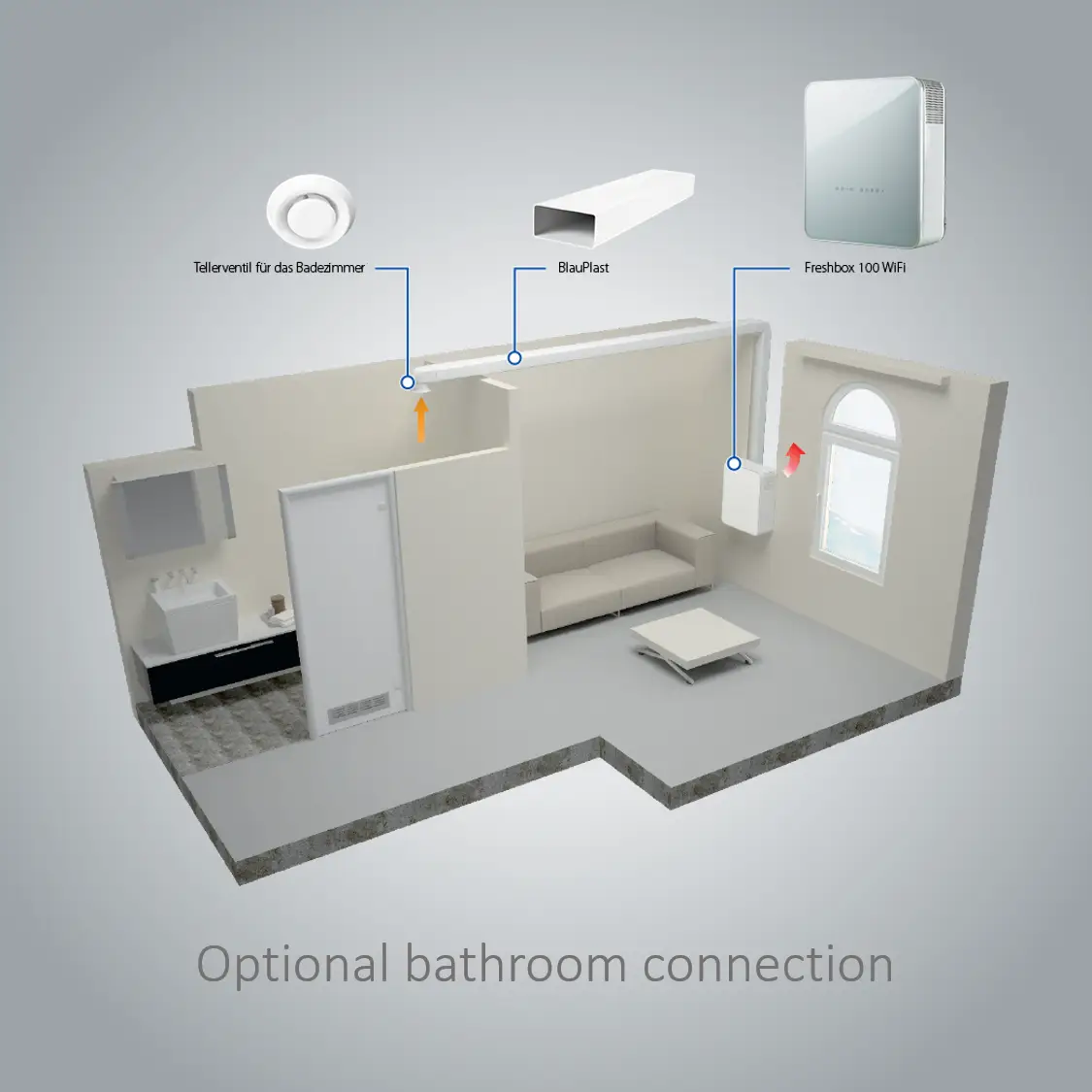

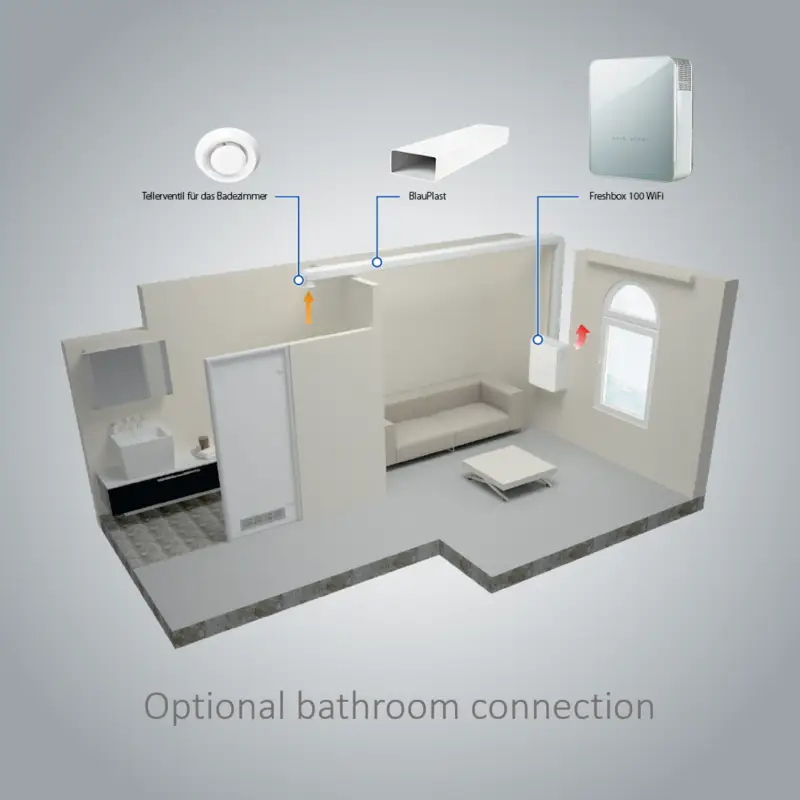

• Exhaust duct connection to provide air extraction from the bathroom
• Electric preheater or reheater for cold climate conditions
• Heat exchanger with an enthalpy membrane (optional)

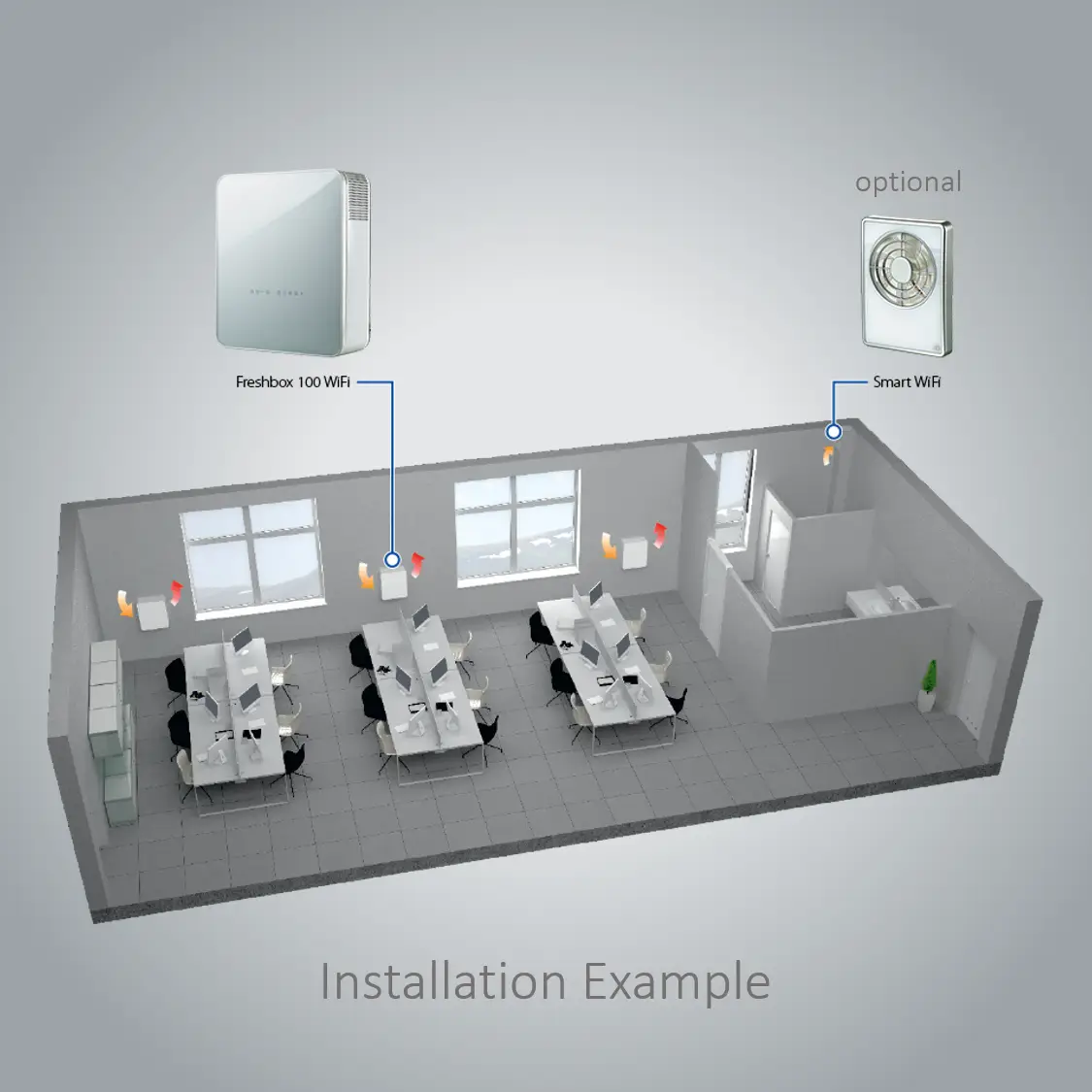

Typical Application

• Living areas with tight or no ceiling space
• Retrofit projects
• Office rooms
• Training Rooms / Schools

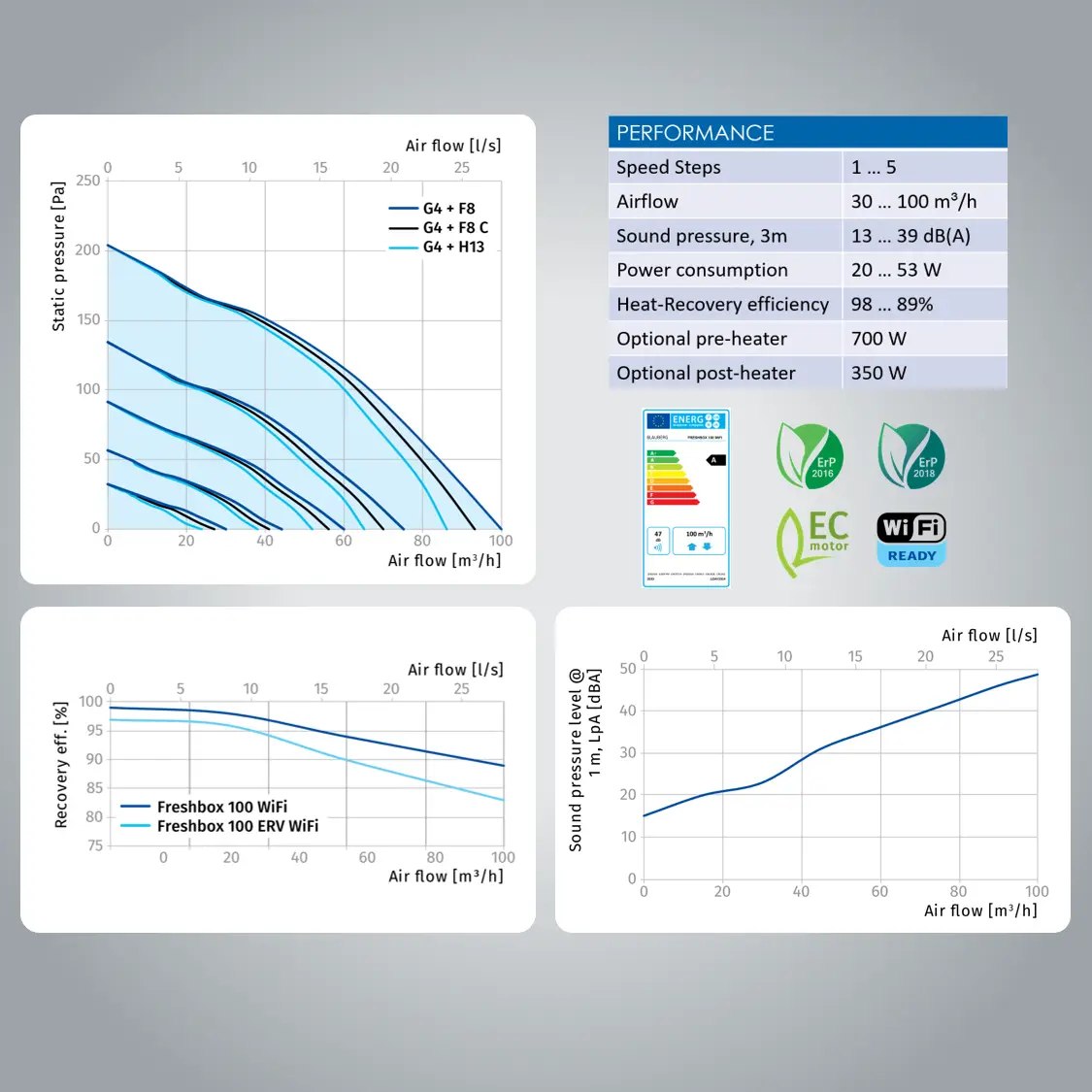

Performance

• Airflow: 100 m³/h (max.)
• Pressure: 200 Pa (max.)
• Example:
  Duty point: 80m³/h @ 60Pa
  Room: 50m² with 2.6m ceiling -> 0.62 air changes per hour

Versions

• BLA-FRE-100-WiFi
  Standard Version with WiFi
• BLA-FRE-E1-100-WiFi
  Version with WiFi and Post-Heater (350W) and Enthalpy Heat Exchanger
• BLA-FRE-E2-100-WiFi
  Version with WiFi, Pre-heater (700W) and Post-Heater (350W) and Enthalpy Heat Exchanger

In the Box

• MHRV unit
• Remote Control
• Socket Key (to open unit for maintenance)
• Wall-mounting template
• User manual

Typically required for wall installation

• Duct Ø100mm (trough-wall)

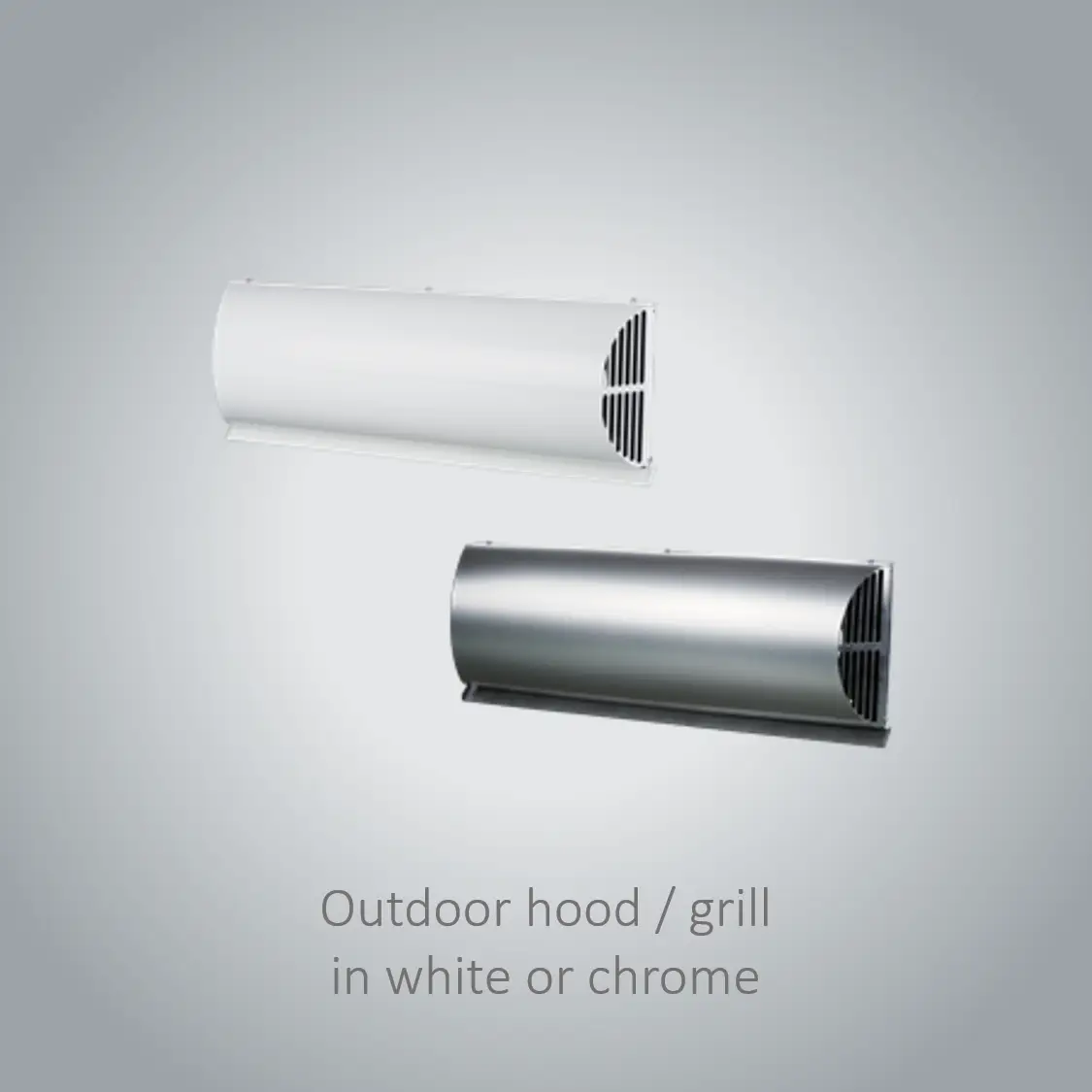

• Outdoor grill/ Trade seal*
  (See suitable cowling: BLA-FRE-MS100*)

*Check with local council for acceptability
