Lindab Airy 125 – Square

Documentation
Lindab Airy – Installation Guide
Lindab AIRY – Valve

Description

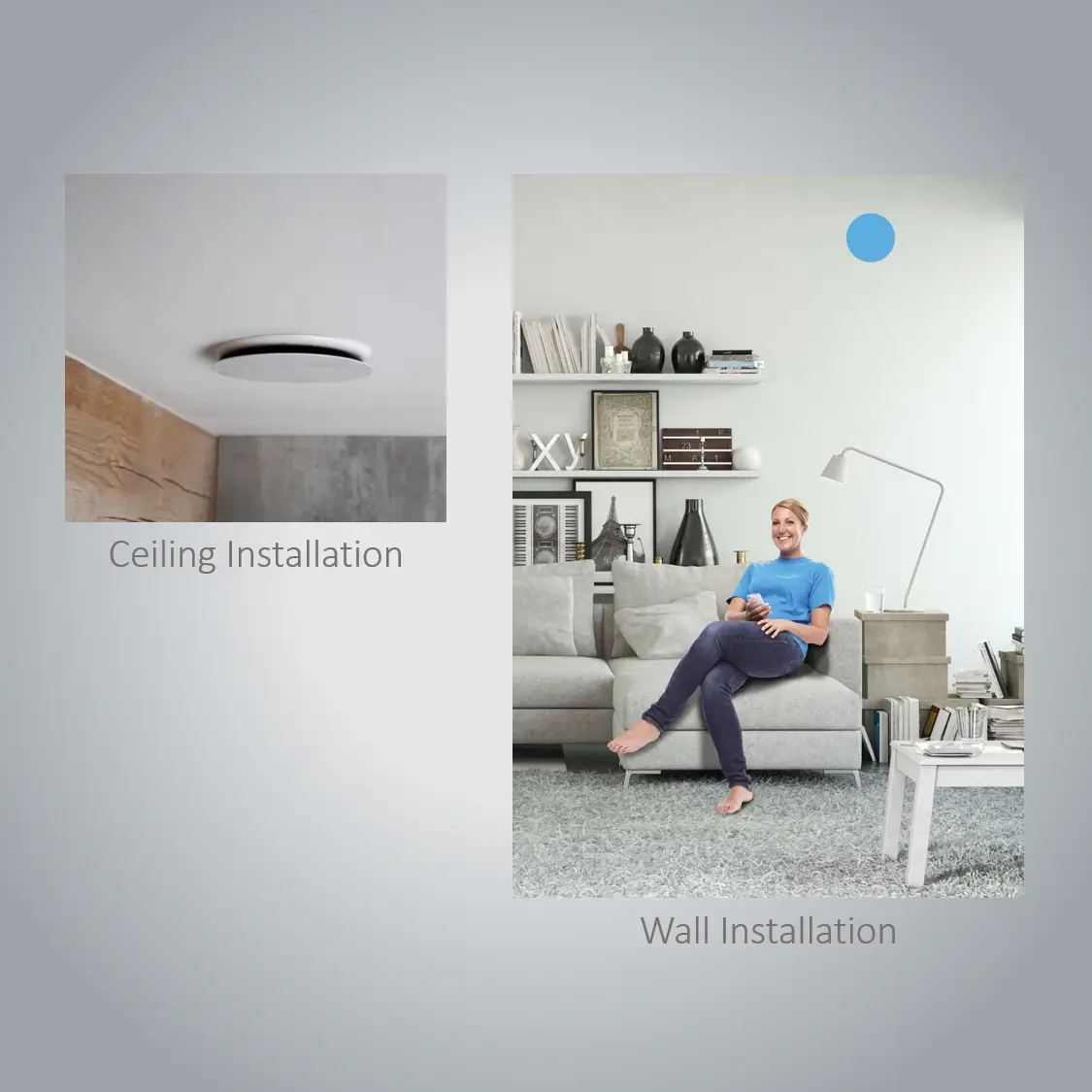

The Lindab AIRY vent is designed for wall or in a ceiling installation. Its smart grip function ensures an easy installation and its unique sound data an optimum sound level. The AIRY 125 can be used for supply and extraction air.

Highlights

• Sleek and elegant design
• For supply and extract air
• Airflow up to 170m³/h
• Standard 125mm spigot
• Installation without tooling
• Build-in stepless damper, adjustable from room
• Material: Galvanised steel, white (paintable with primer)
• Compatible with BlauFast RPZ125 valve connector

Installation

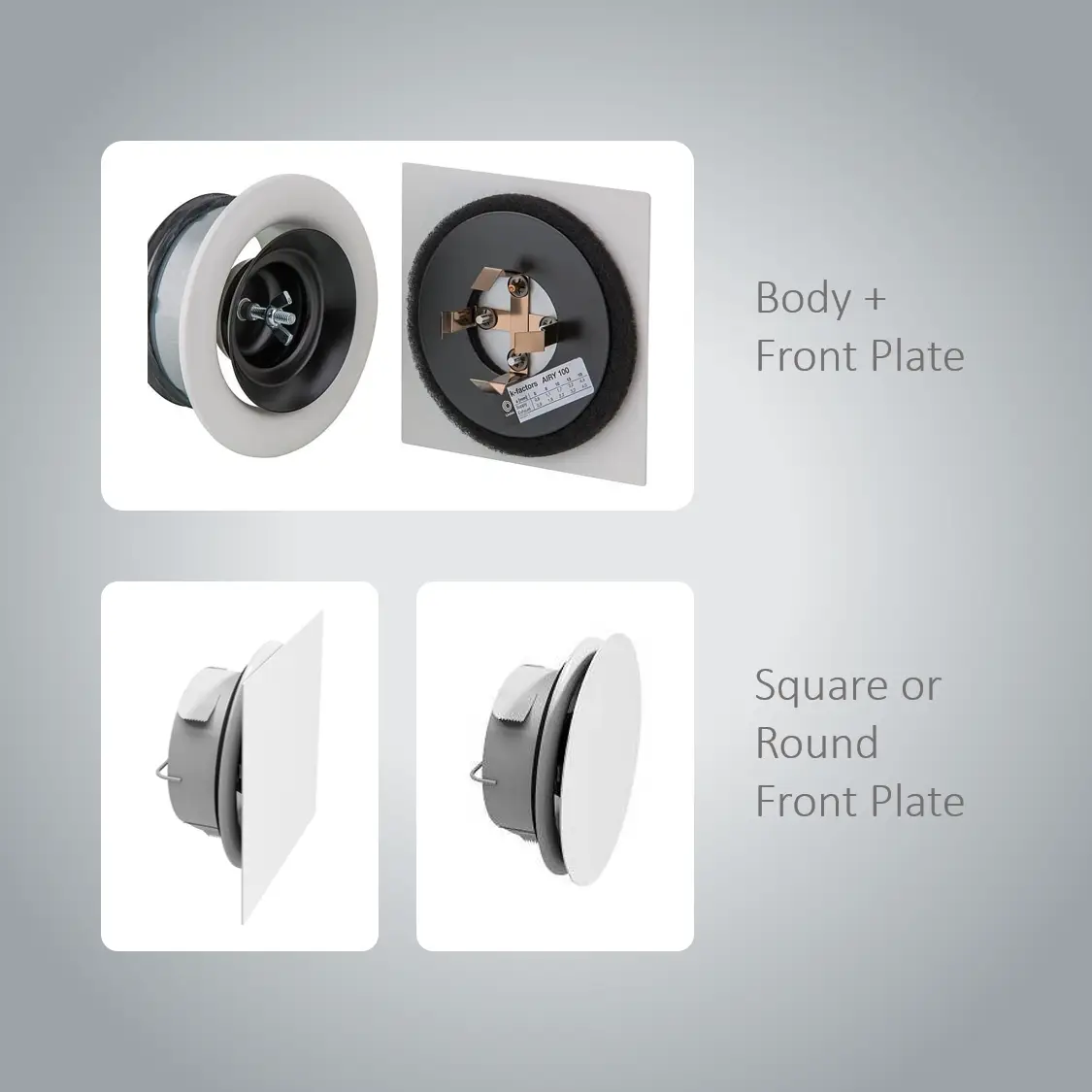

The valve consists of two parts; the valve body and the flat front plate.

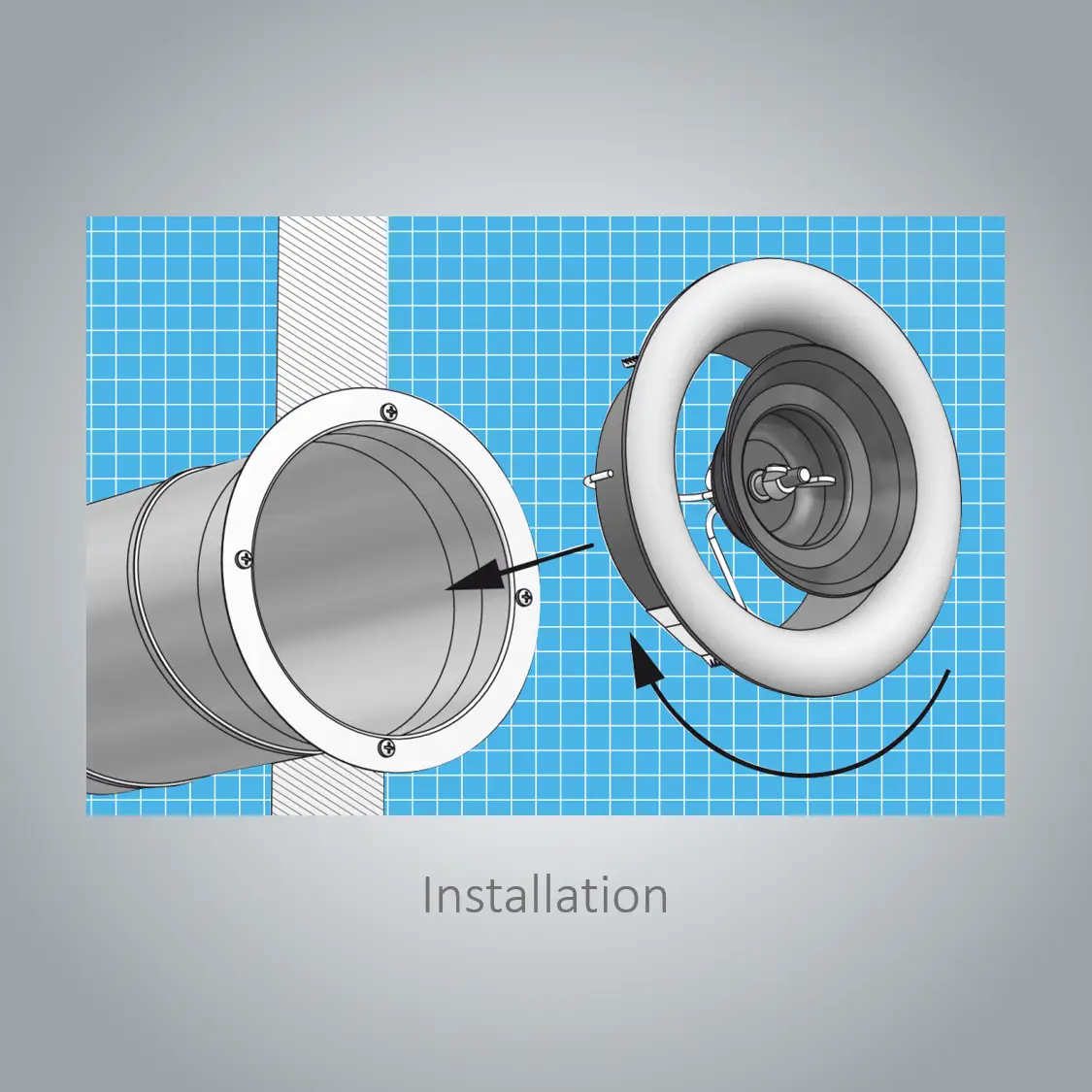

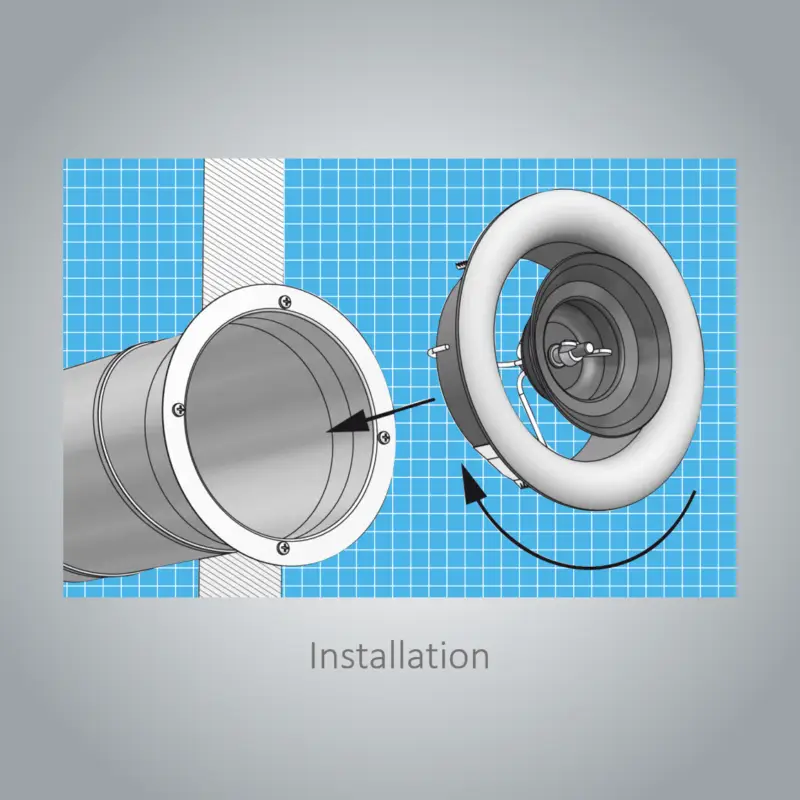

The valve body can be easily fixed to a 125mm duct system or valve socket (e.g. BlauFast RPZ125) via the flexible spring wings. The front plate clicks to the valve body via springs.

Note:

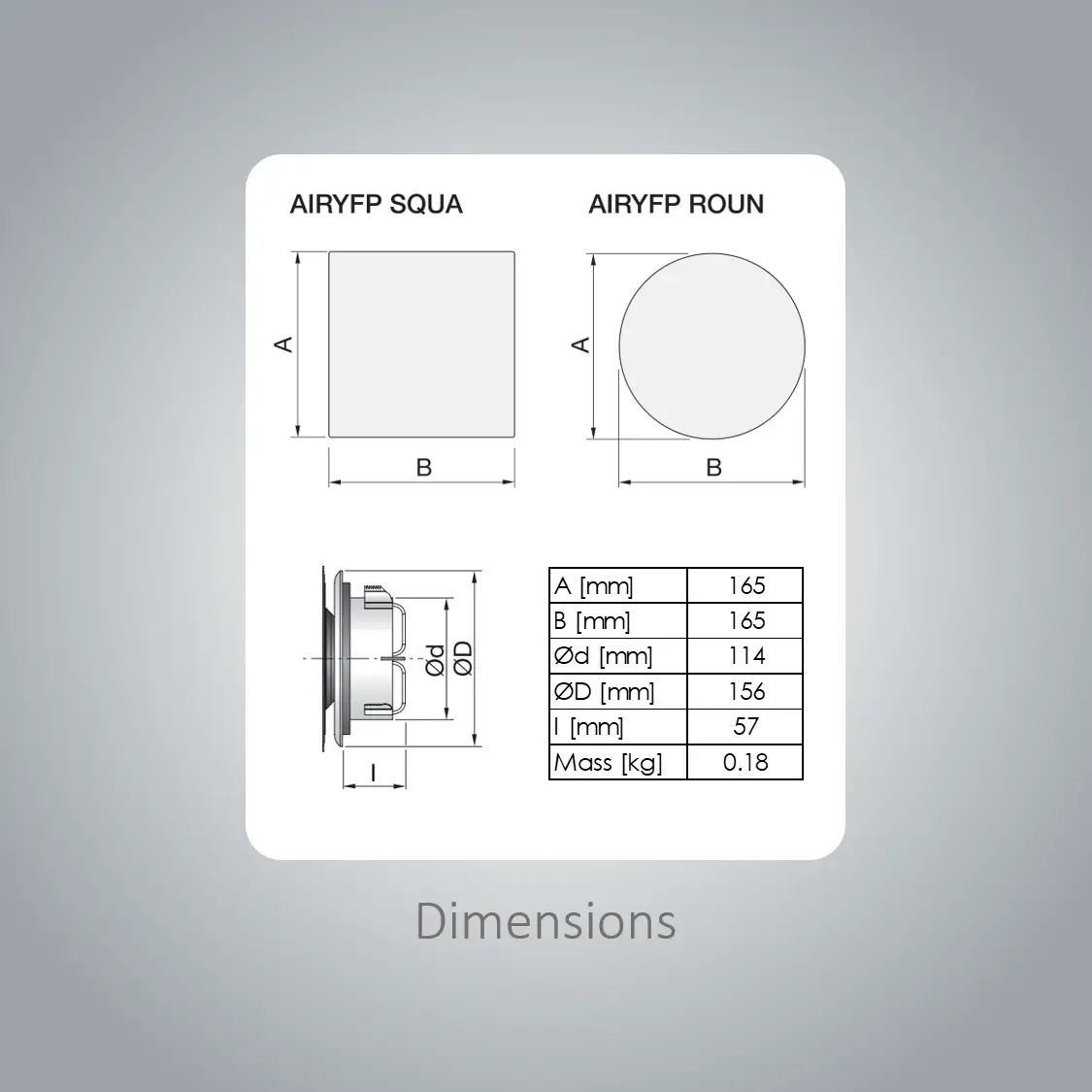

• The valve body has to cover the brim of the product it is fitted into. Therefor the maximum diameter of the brim for the AIRY 125 is 150mm.

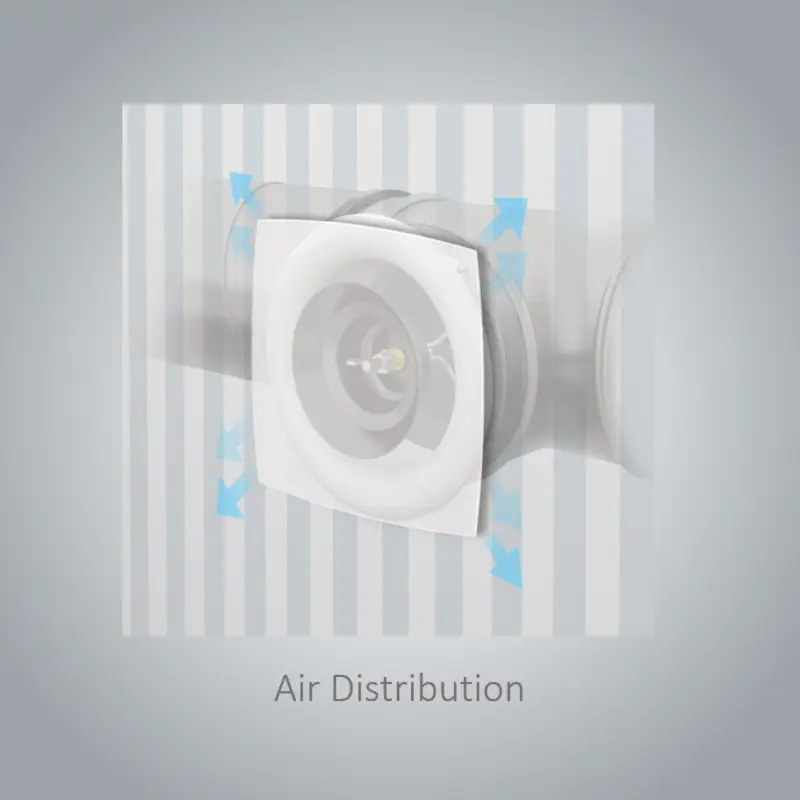

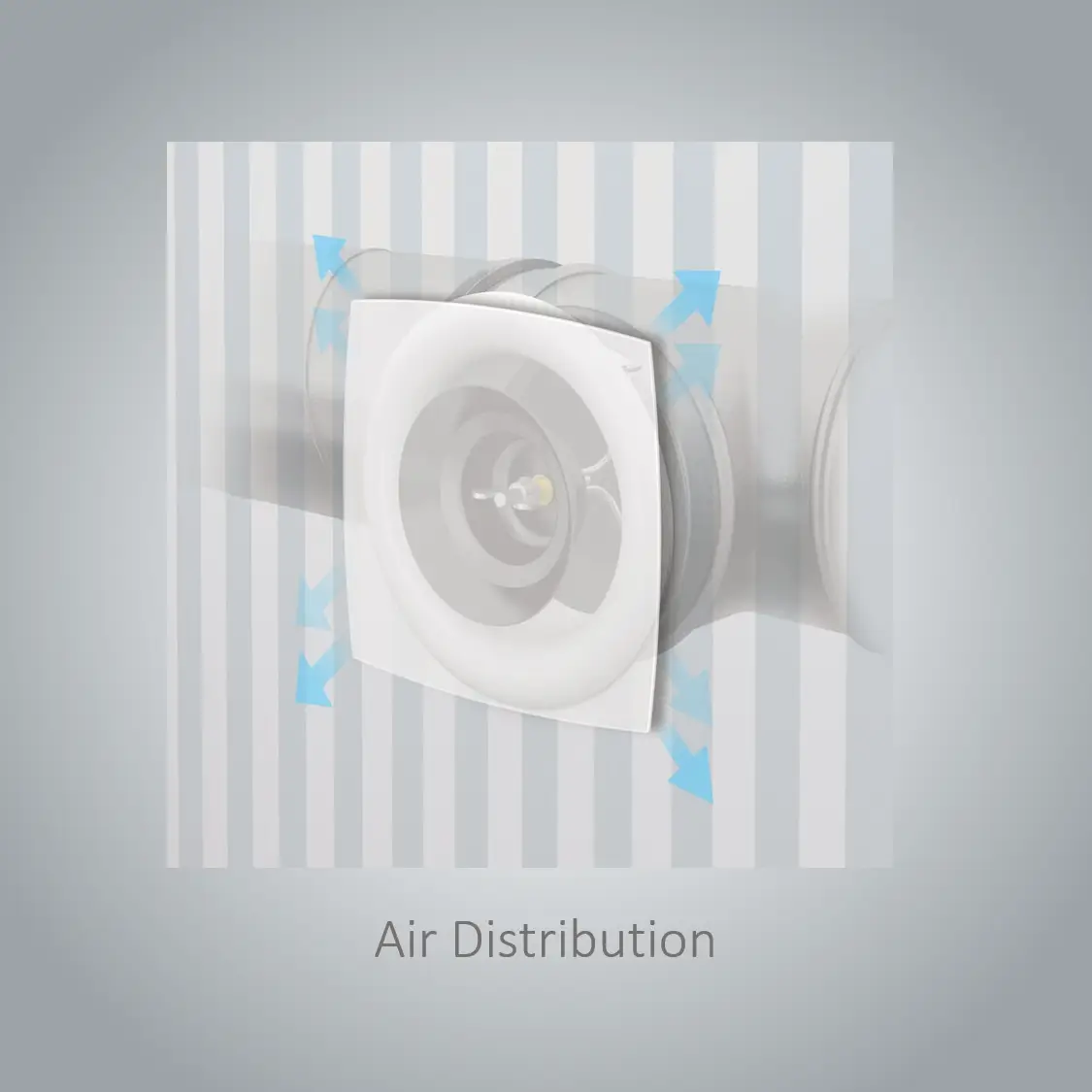

• The AIRY can be equipped with a blanking (off sector plate) to close parts of its 360° air flow.
• The airflow can be adjusted by screw in or out the inner valve plate. Note that as smaller the gap and higher the airflow, the more noise can occur.

Versions

• AIRY 125 Round
  Valve body with round shaped front plate.

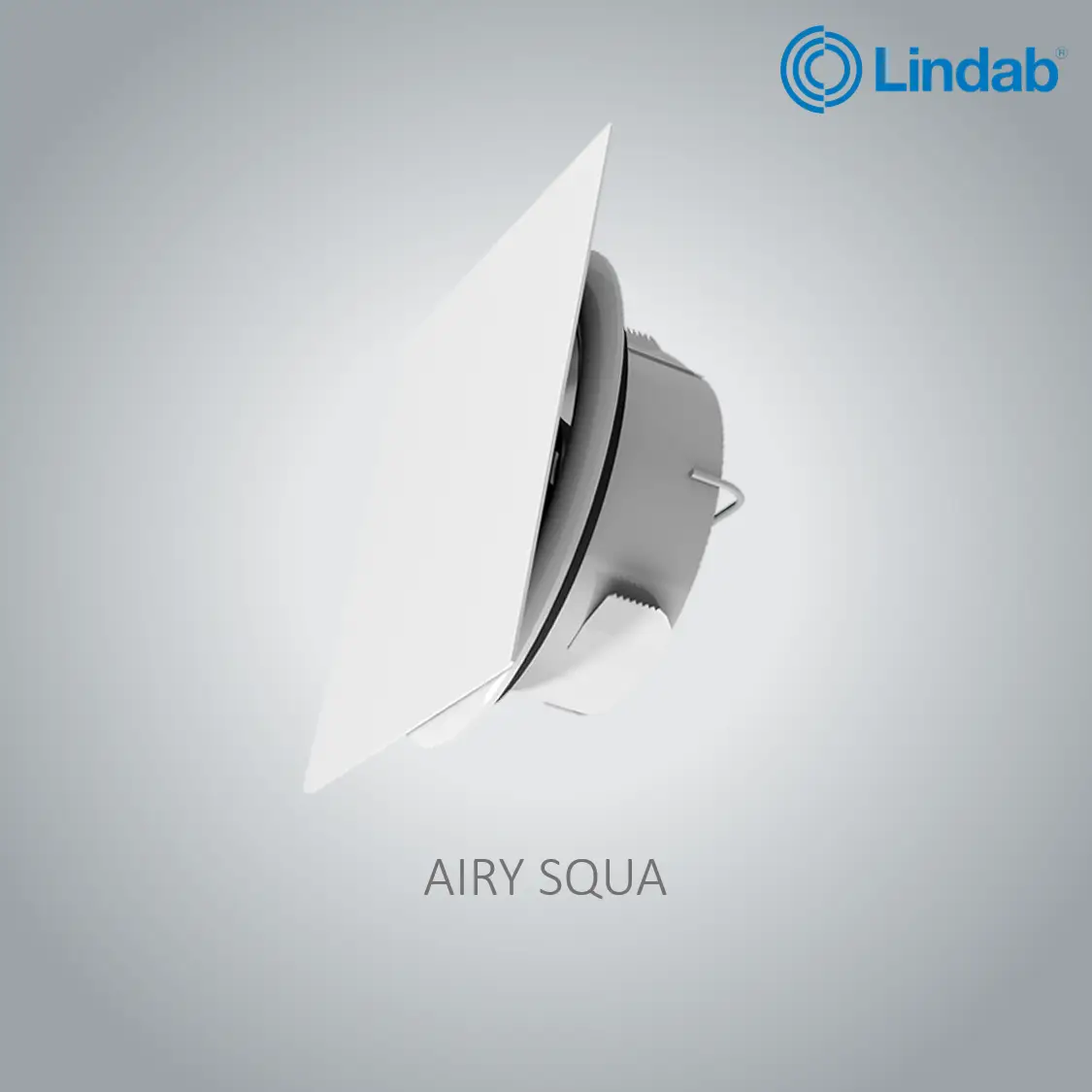

• AIRY 125 Square
  Valve body with squared shaped front plate.
