Elicent REC Duo 100

Documentation
Elicent REC-Duo 100 – Flyer
Elicent REC-Duo 100 – Manual
Elicent REC-Duo 100 RC Plus – Quick-Guide

Description

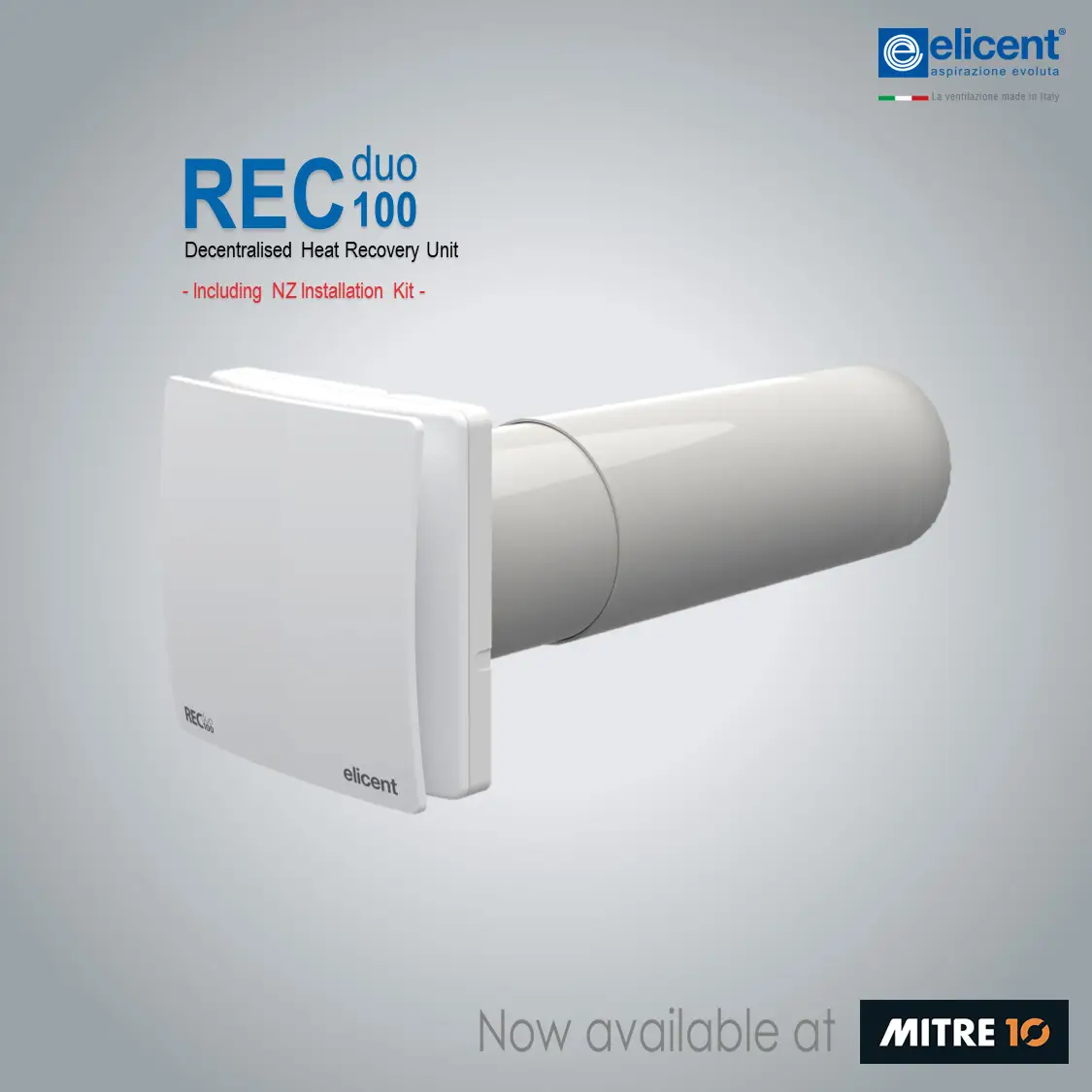

Elicent REC-Duo 100 – Decentralised Ventilation Unit

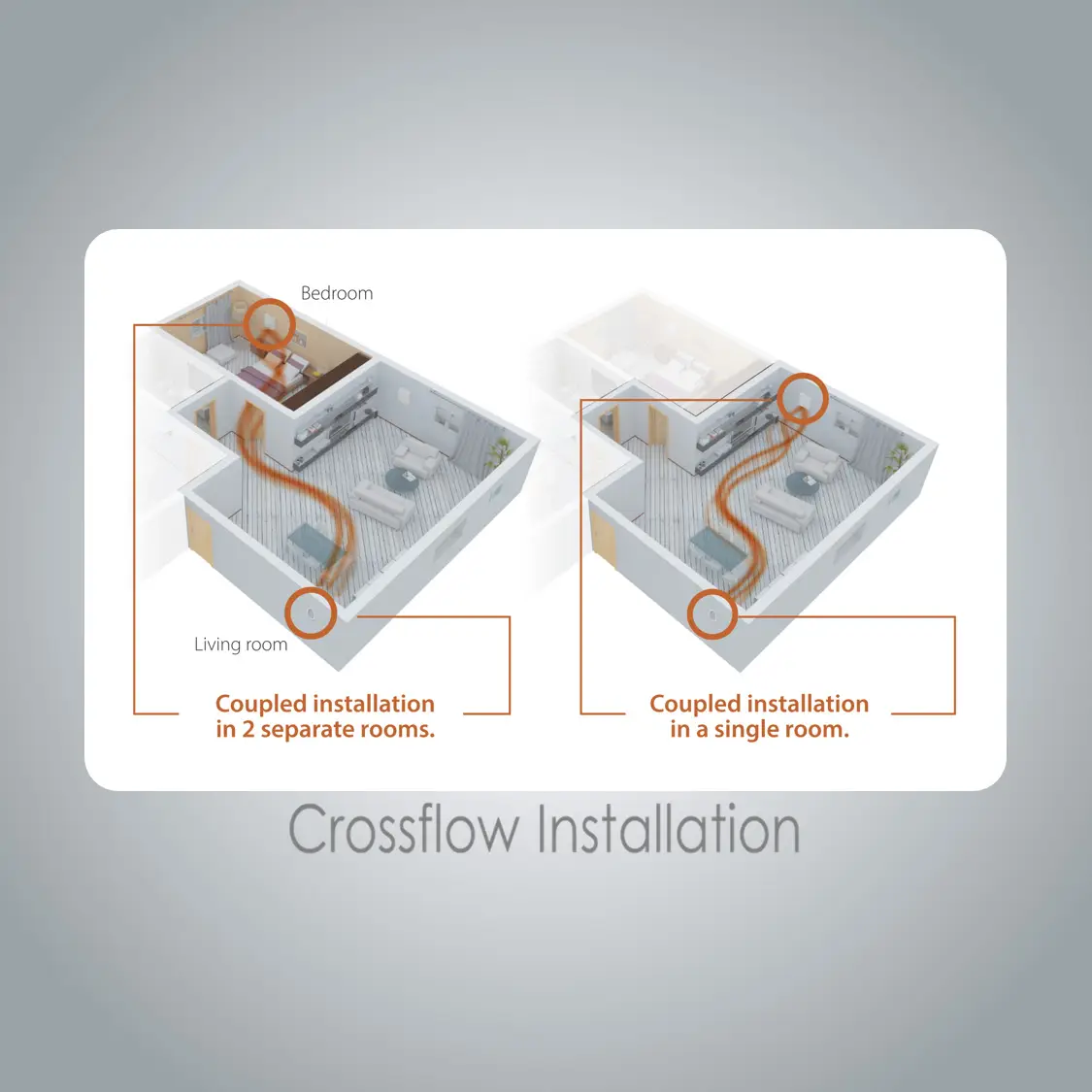

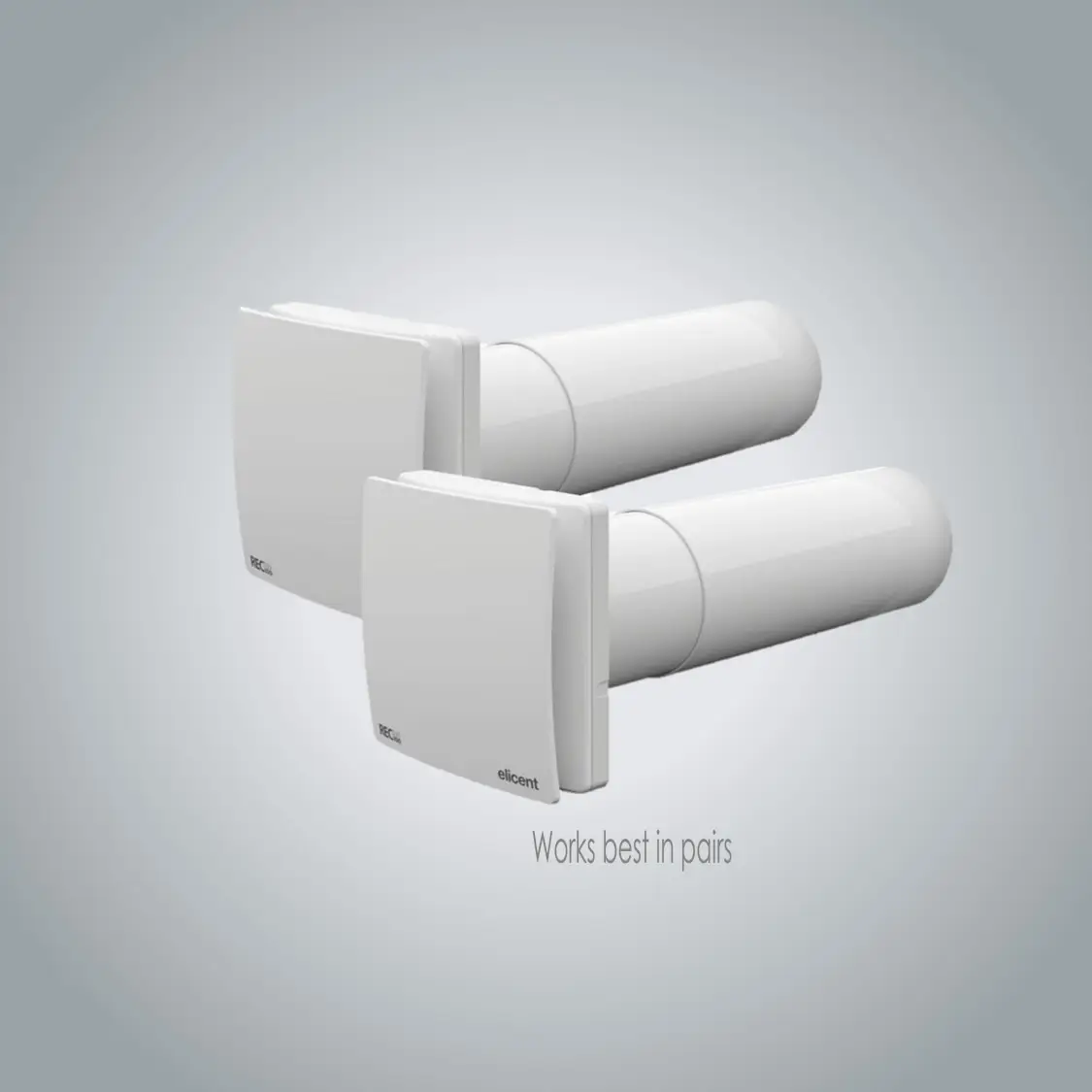

REC-Duo is the new and innovative decentralized ventilation system with heat recovery with up to 90%. Suitable for any kind of rooms and ideal for a coupled installation to work in Push-Pull mode and optimize the system efficiency. The PLUS RC version can be linked wireless to up to 5 further PLUS RC units.

Highlights

• Through-wall ventilation system
• Heat recovery with up to 90% efficiency
• Effective removal of stale & humid air
• For rooms & areas up to 35m²
• Low running & maintenance cost

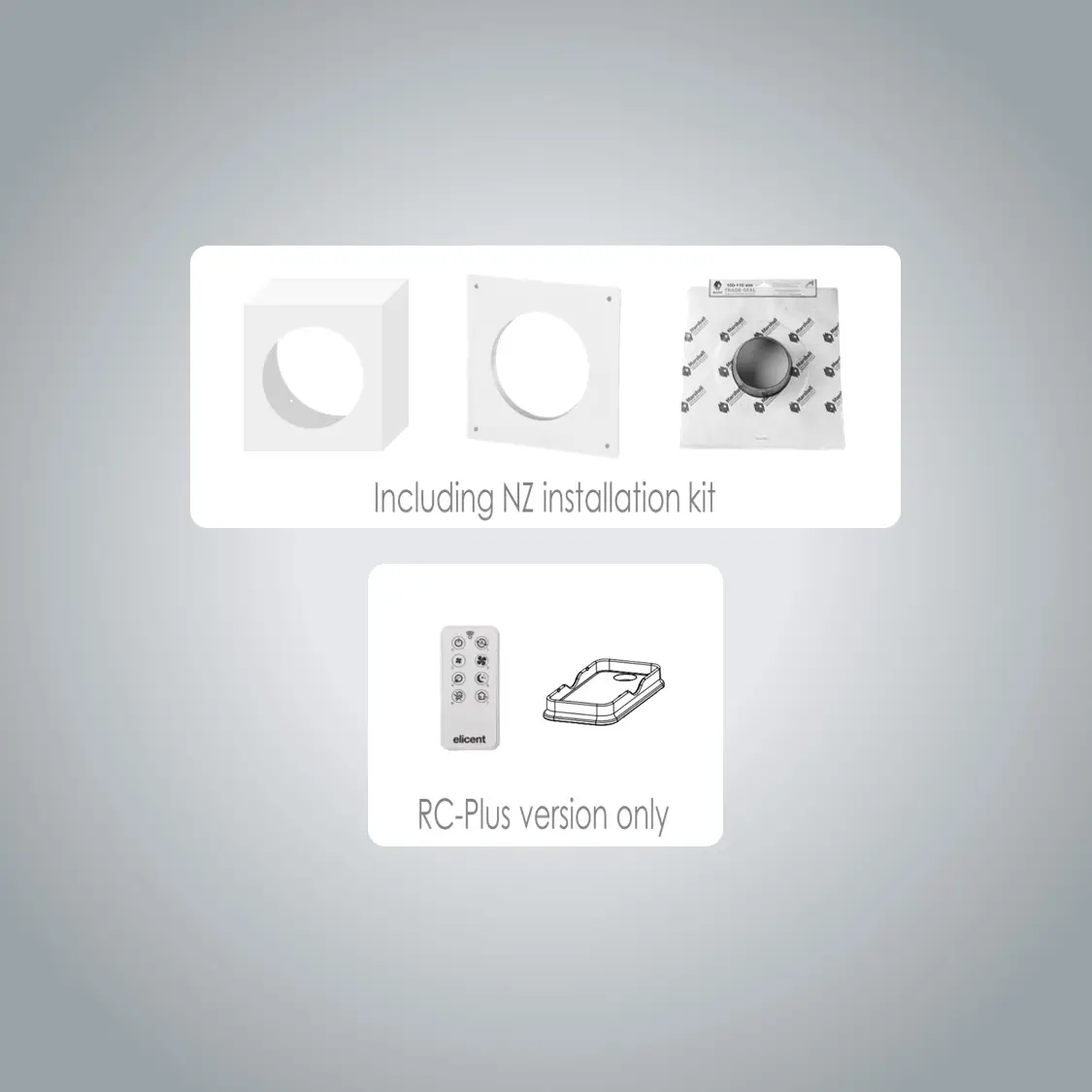

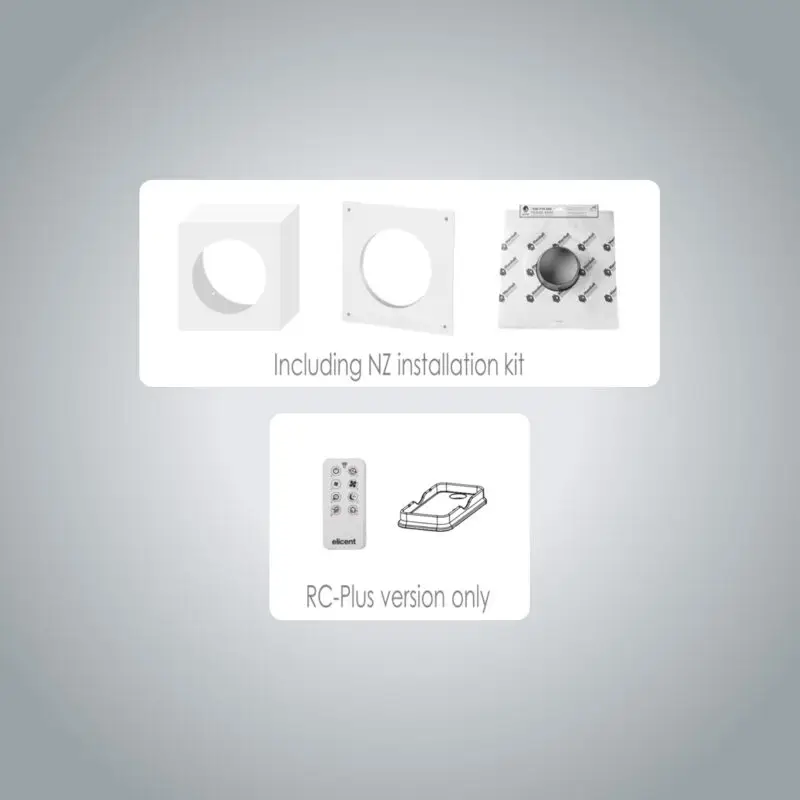

• Including NZ Installation Kit
• For retrofit & new-build

Typical Application

• Single rooms with humidity or stale air problems
• New builds with no ceiling space for ducting
• Retrofit projects and DIY (electrician required)
• Cost efficient solution to meet building codes

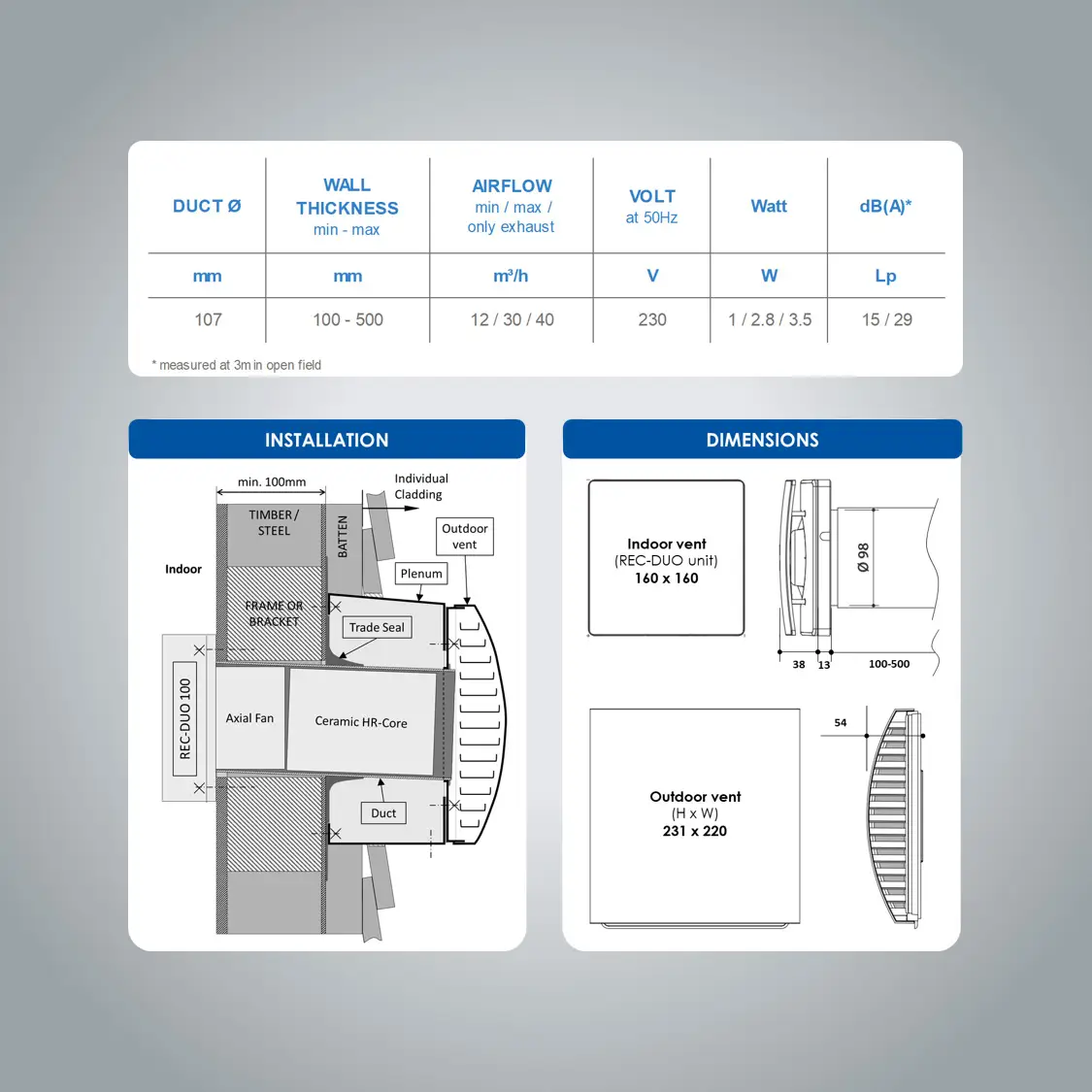

Performance

• Airflow: 12/30/40m³/h (min/max/exhaust only)
• Coverage: 1 room (up to 35m²)

Versions

• REC Duo 100 Plus RC – incl. Inst. Kit
  Decentralised Ventilation Unit REC Duo 100 Plus RC – incl. Installation Kit Set

• REC Duo 100 MHY – incl. Inst. Kit
  Decentralised Ventilation Unit REC Duo 100 MHY – incl. Installation Kit Set

• REC Duo 100 Base – incl. Inst. Kit
  Decentralised Ventilation Unit REC Duo 100 Base – incl. Installation Kit Set

• REC Duo 100 Plus RC – Unit only
  Decentralised Ventilation Unit REC Duo 100 Plus RC – unit only

• REC Duo 100 MHY – Unit only
  Decentralised Ventilation Unit REC Duo 100 MHY – unit only

• REC Duo 100 Base – Unit only
  Decentralised Ventilation Unit REC Duo 100 Base – unit only

In the Box

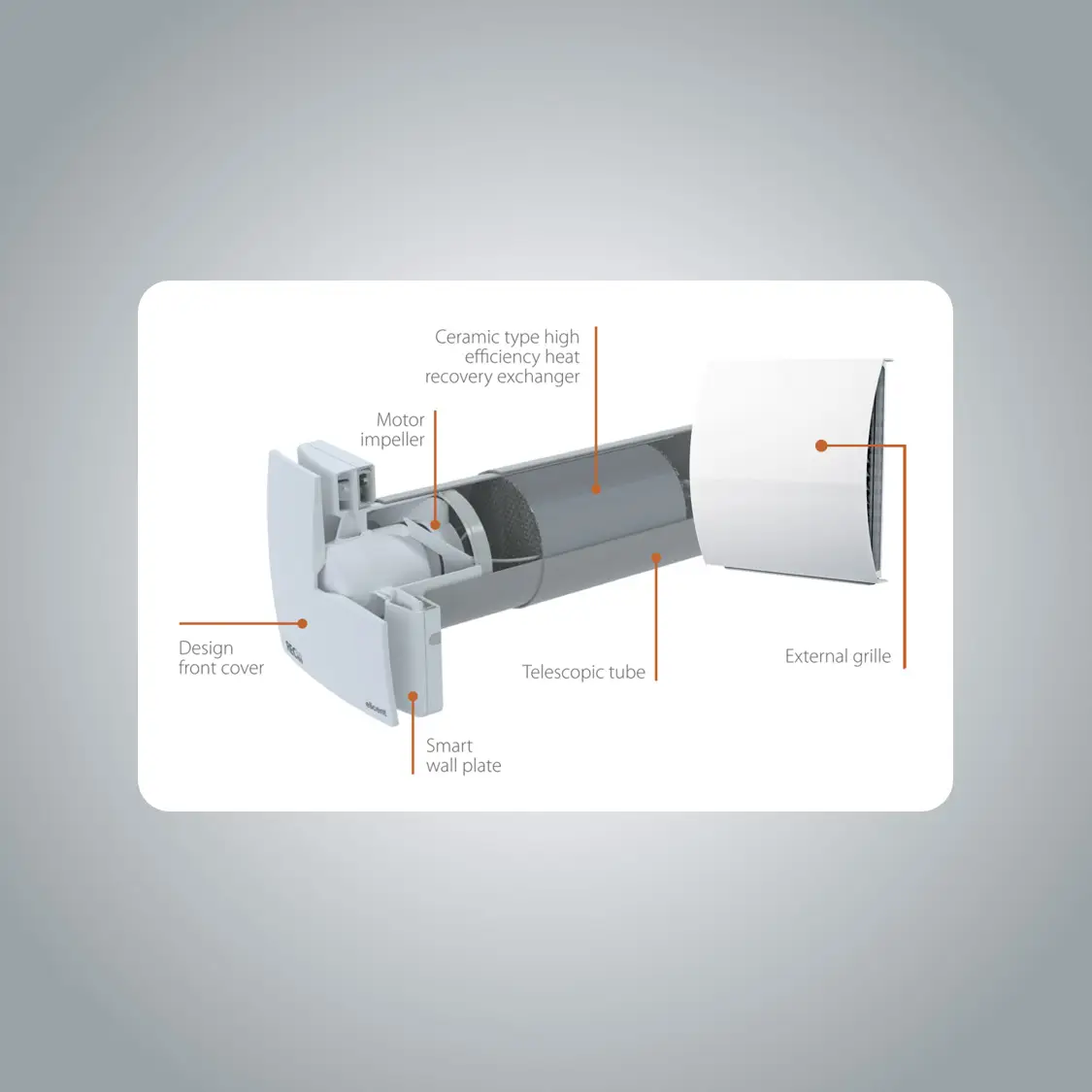

• REC-Duo100 unit incl. telescopic Ø100 duct (up to 300mm)

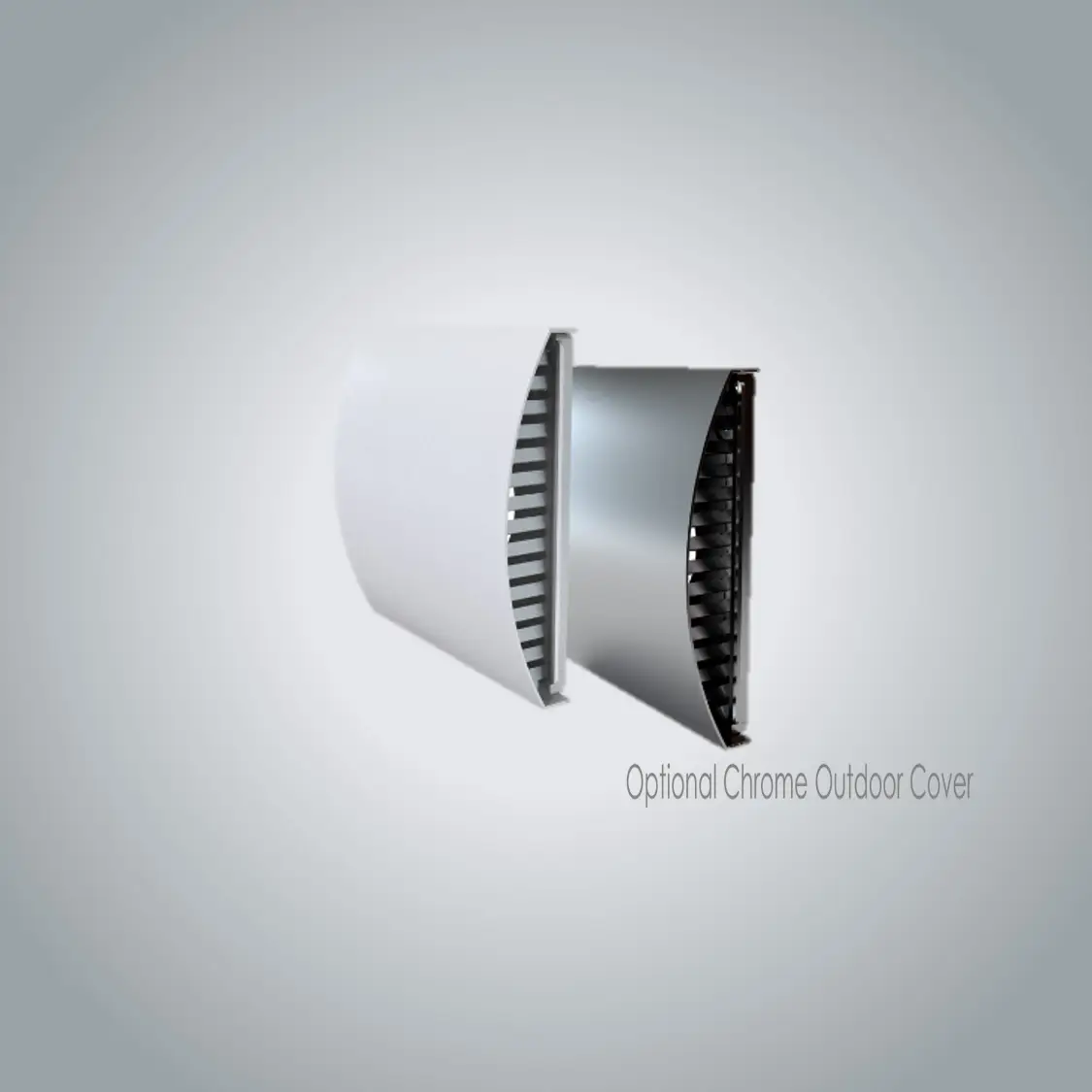

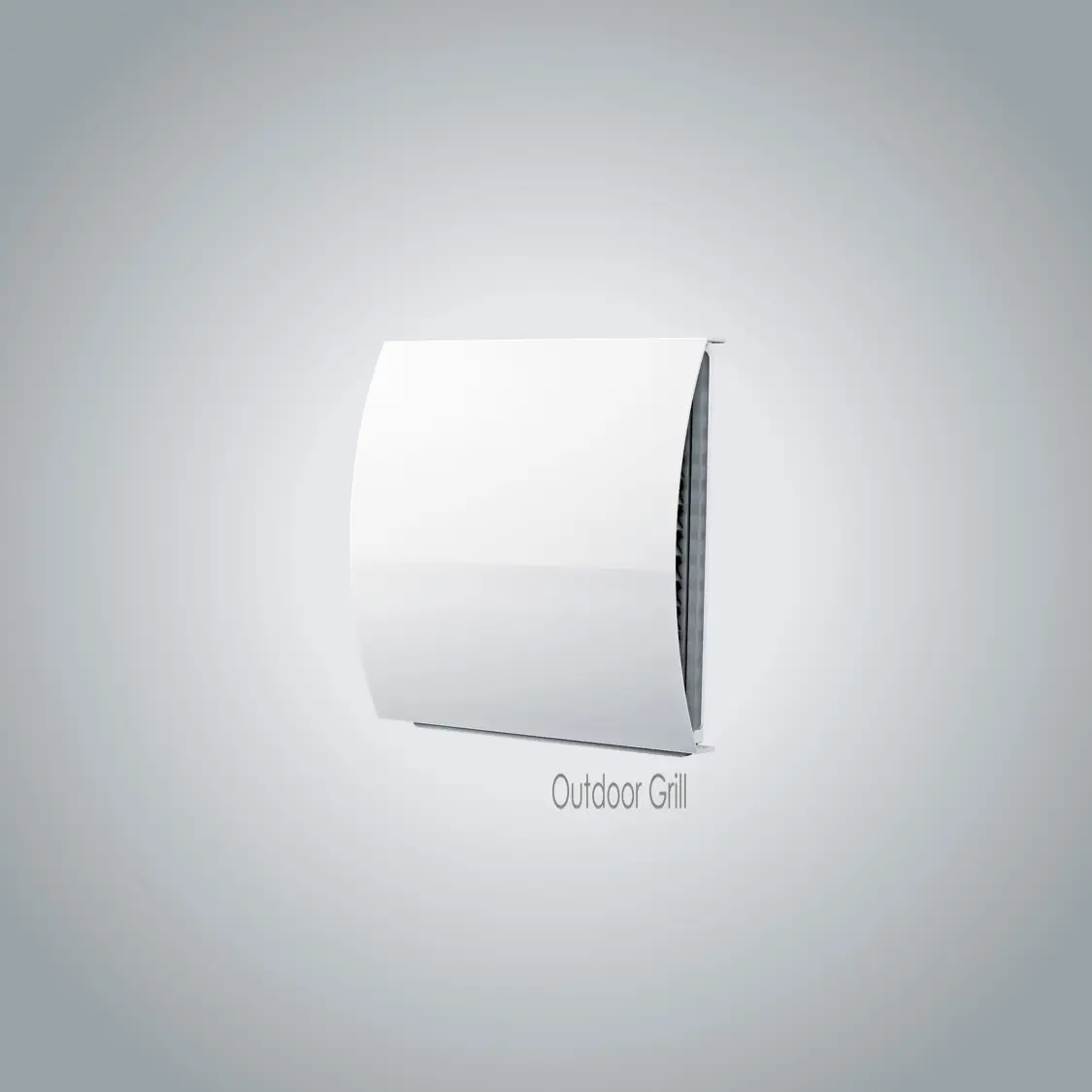

• Outdoor vent / cowling* in white (paintable with primer)
• Plenum for retrofit installation or wall-thickness < 220mm
• Trade seal for weather tight installation
• Wall bracket
• User manual

PLUS RC version:

• Remote control
• Wall mounting kit for remote control*Check with local council for acceptability

Typically required for installation

• Electric wiring (Electrician required)
• Electric switch (for BASE and MHY version)
• Tools and consumables
