Ventus 150 – Data Sheet

Description

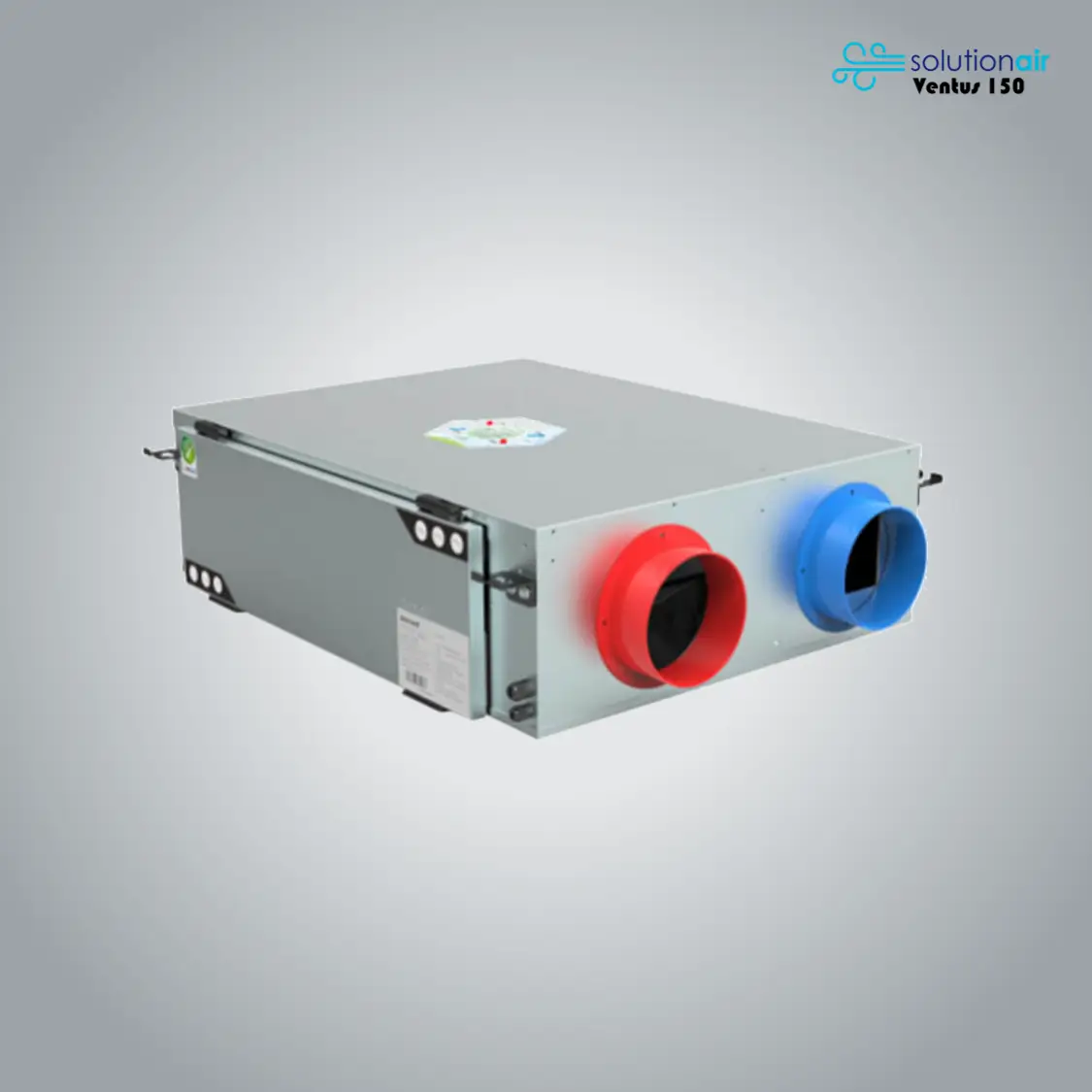

Solutionair Ventus 150 – Horizontal Ventilation Unit

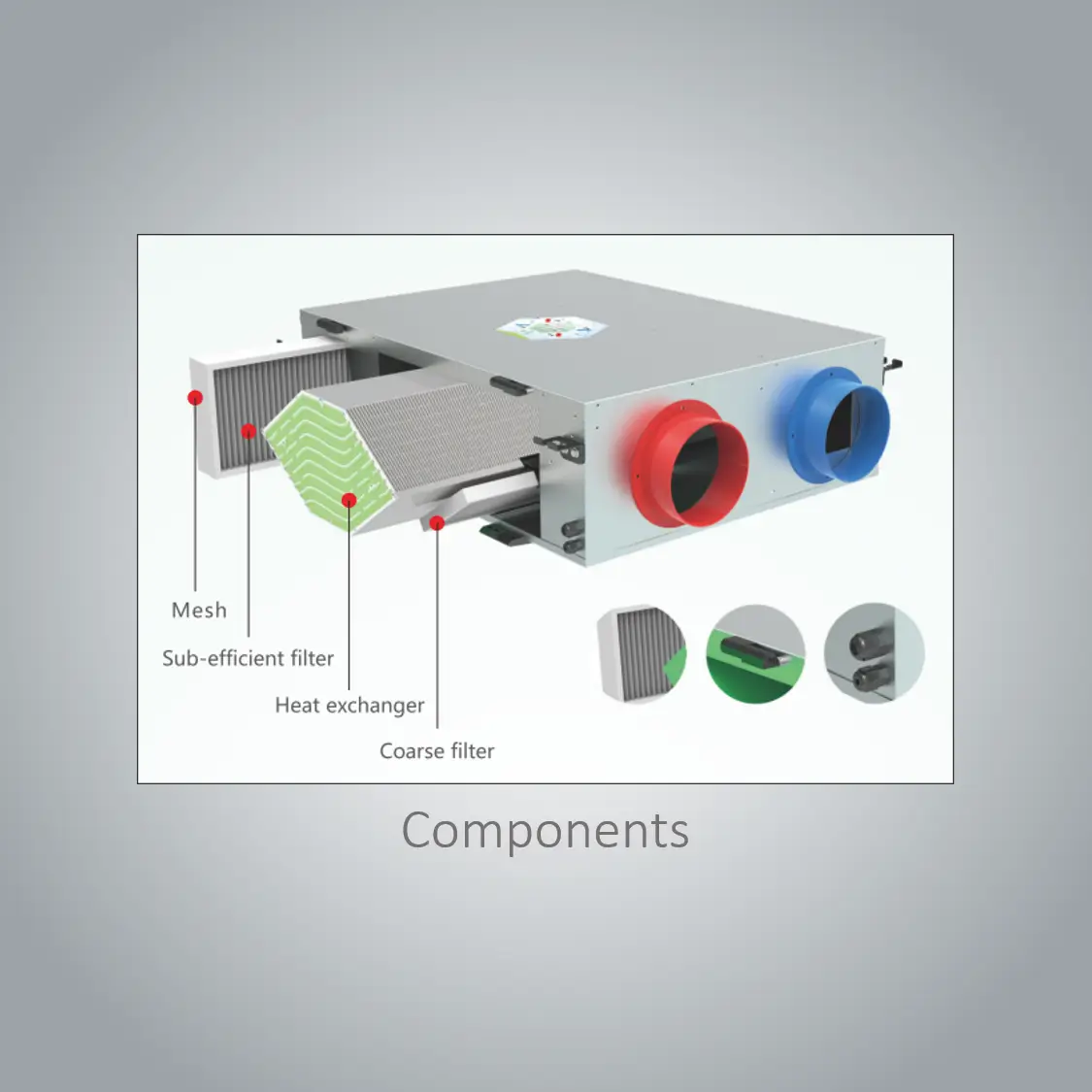

Ventus 150 is a MVHR unit, designed by Solutionair for the New Zealand market which incorporates advanced technologies like crossflow heat-exchanger and EC fans. Its compact horizontal design makes the unit ideal for small roof cavities.

Highlights

• Compact design
• Horizontal mounted, side connection
• Fresh Air for up to 4 rooms
• Dedicated Bathroom and Kitchen Extraction
• Summer-Bypass (Free Cooling Mode)
• 3-speed fans from ebm-papst
• 2-year warranty

Typical Application

• Apartments, Tiny Houses, Cabins
• Auxiliary ventilation unit
• When only restricted space for unit is available

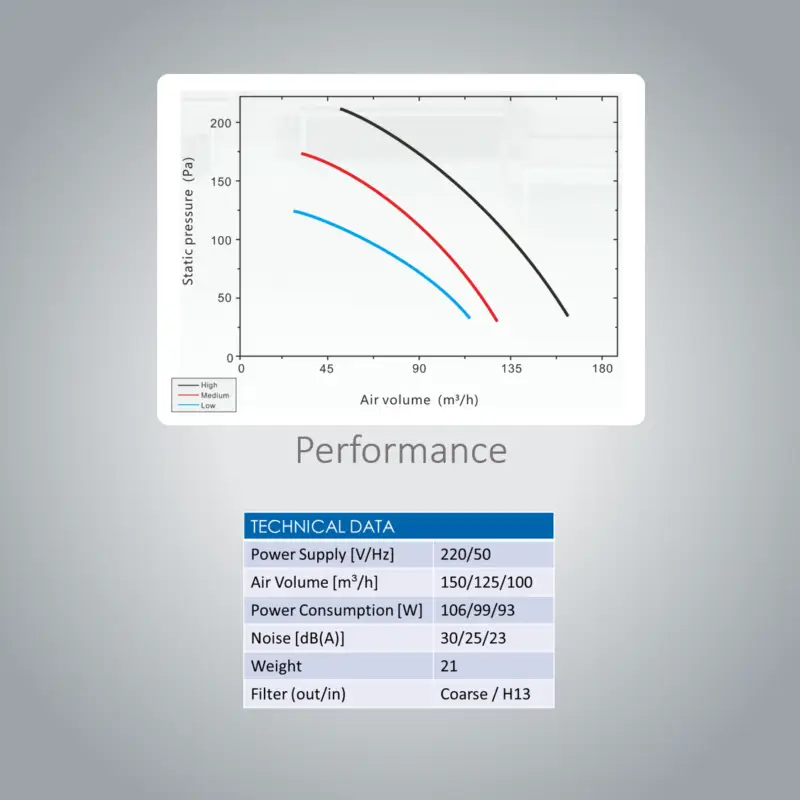

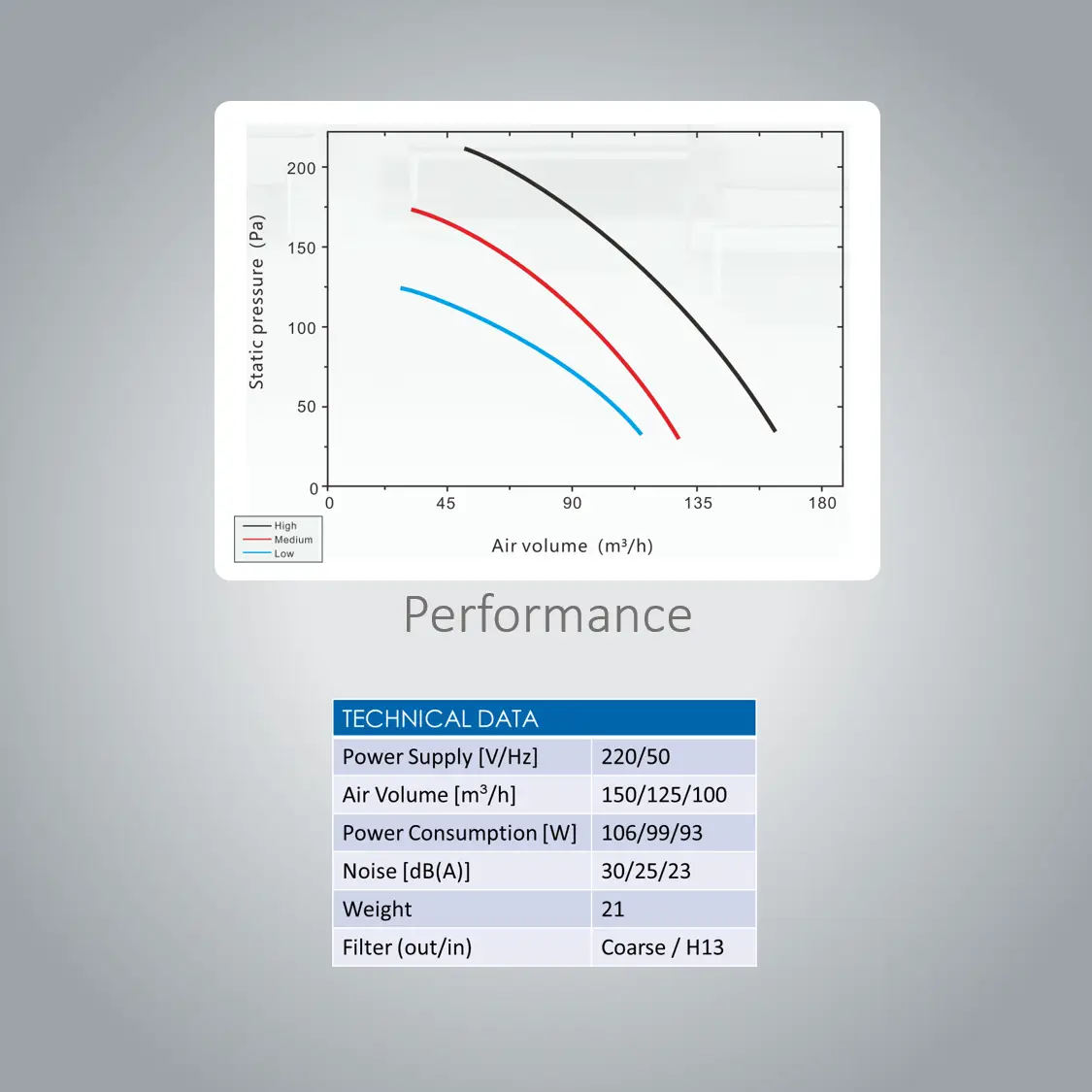

Performance

• Airflow: 160 m³/h (max.)
• Pressure: 200 Pa (max.)
• Example:
  Duty point: 120m³/h @ 125Pa
  House: 70m² with 2.6m ceiling
  -> 0.66 air changes per hour

Version

• Solutionair Ventus 150

In the Box

• Fan unit

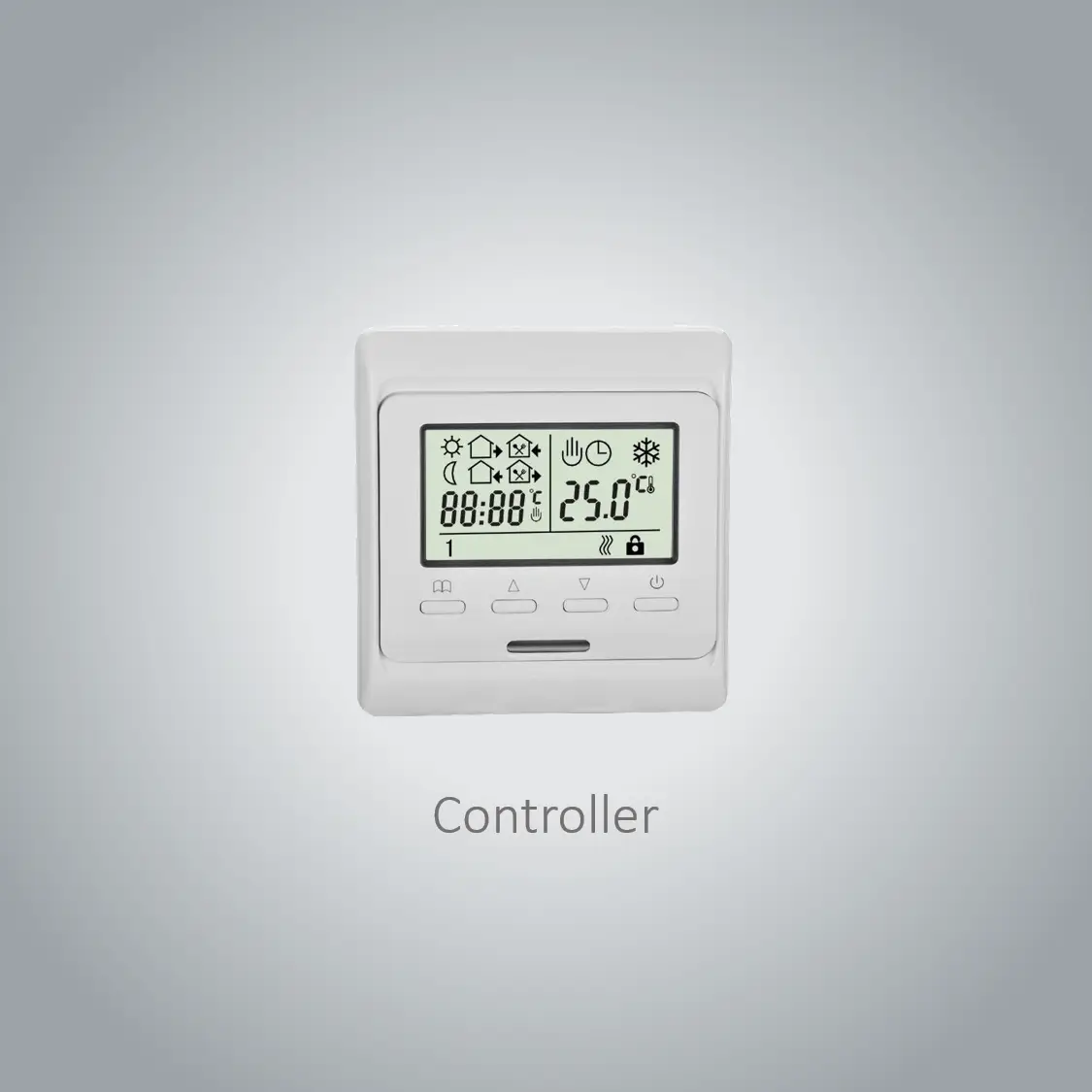

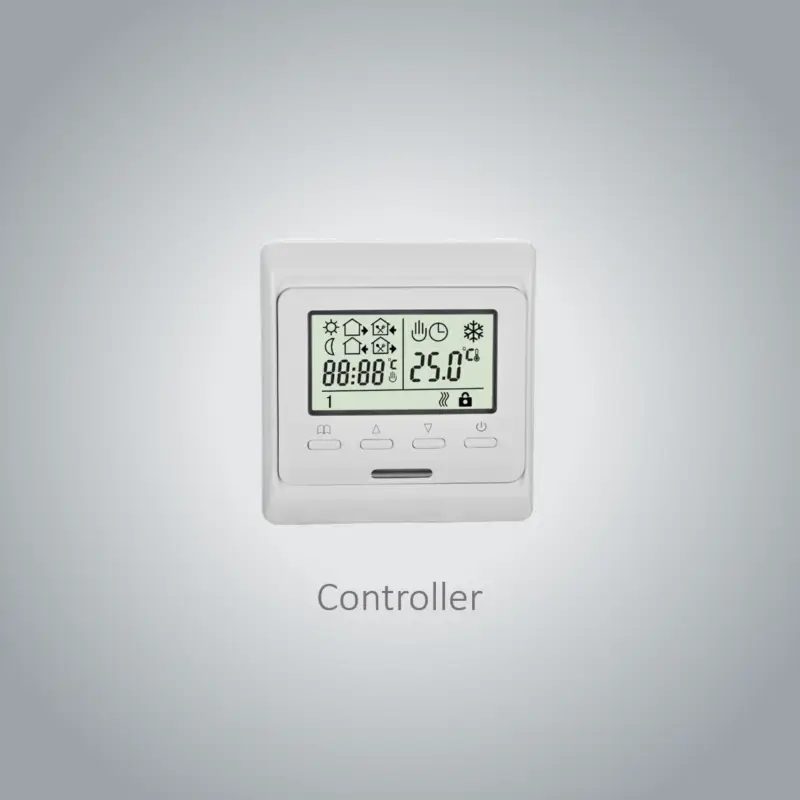

• Controller
• User manual

Typically required for wall installation

• Tools and consumables (e.g. duct tape and screws)
• Mounting to hang unit earthquake safe (e.g. steel rods)*
• Indoor Duct System (insulated Flexduct, 100mm ID)
• Ducting to outside (insulated Flexduct, 100mm ID)
• Outdoor grill/ Trade seal*

*Check with local council for acceptability
