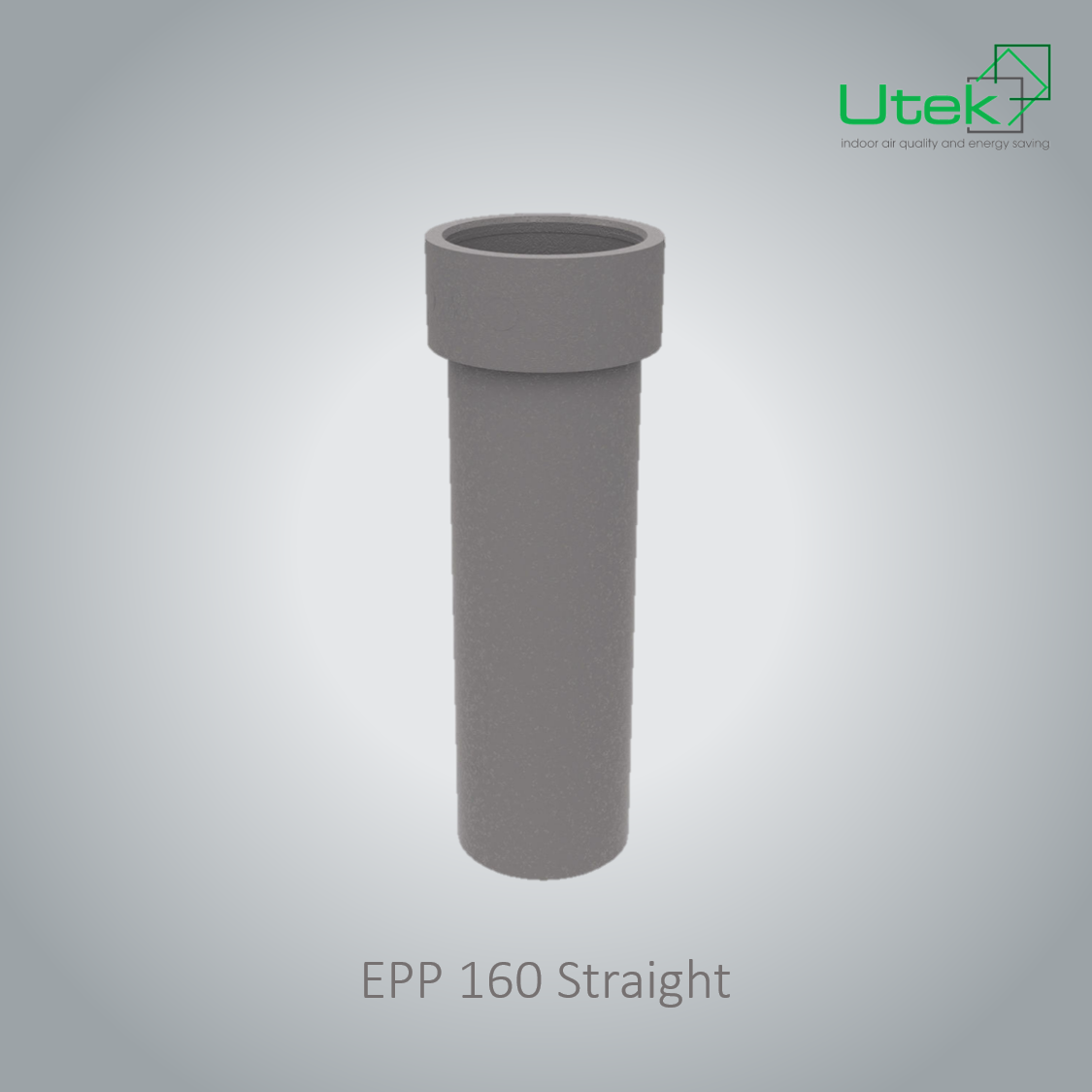

Utek EPP 160mm – 1m Duct

Description
1m straight 160mm EPP duct. 1x joiner included in delivery.

Highlights

• Fast installation – easy cut & plug
• Super light, quiet and airtight
• Highly insulated – no thermal bridges
• Sturdy and rigid – stays in place
• Low vibration transmission
• Low air-resistant

Performance

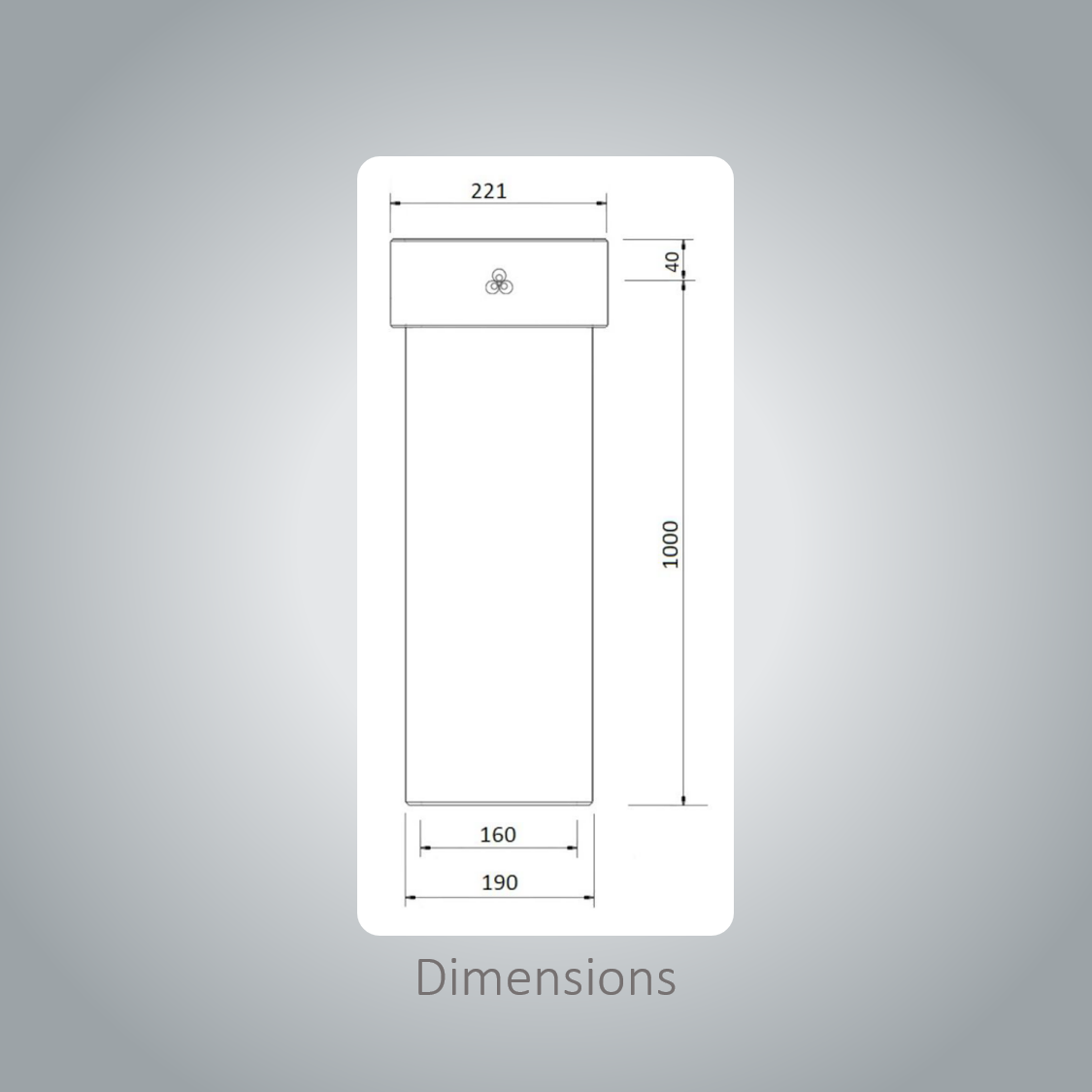

• Length 1000mm
• Inner diameter 160mm
• Outer diameter 190mm (Joiner 221mm)
• Wall thickness 15mm (R2.4)
• Recommended airflow up to 430 m³/h

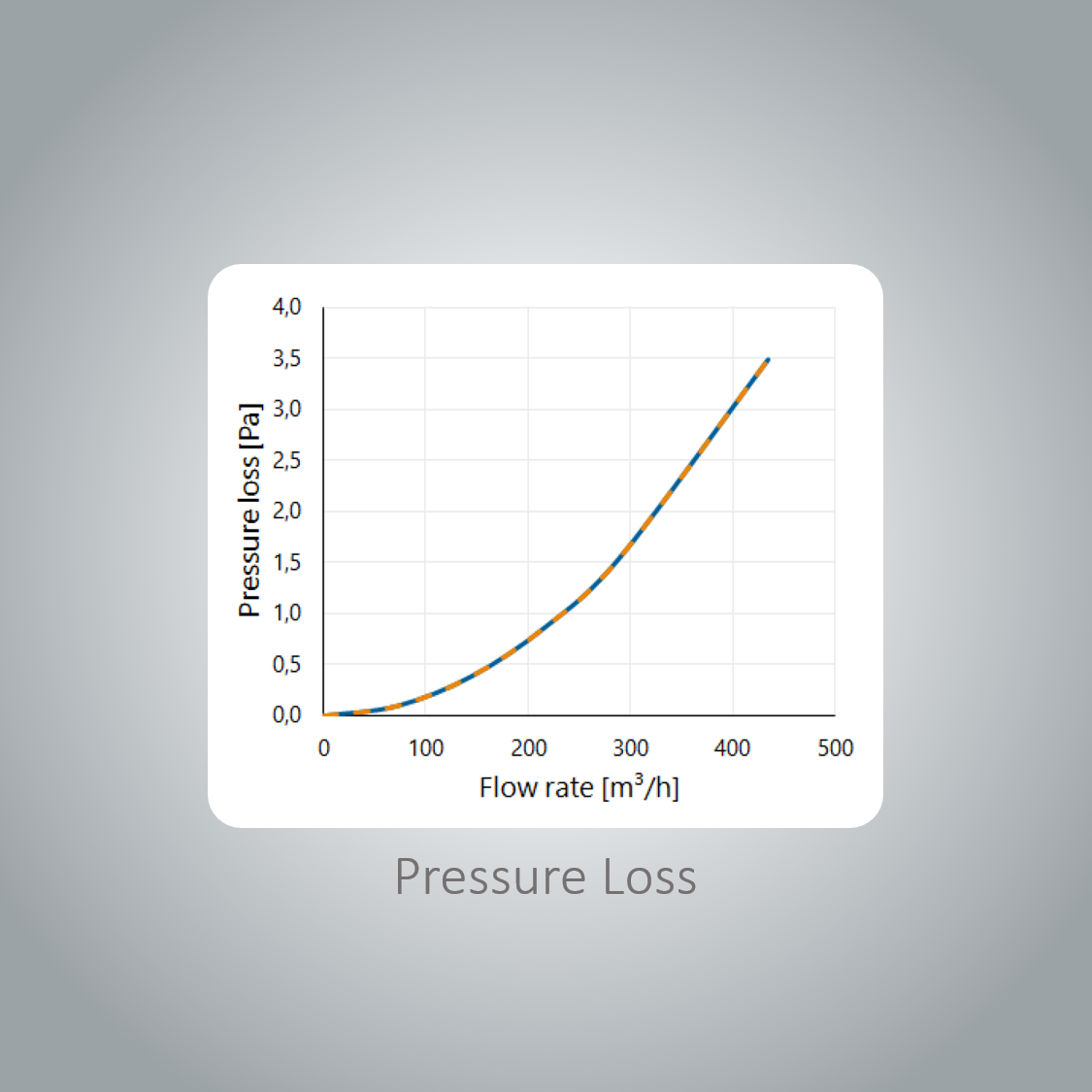

• Nominal air-resident 1.4 Pa at 250 m³/h

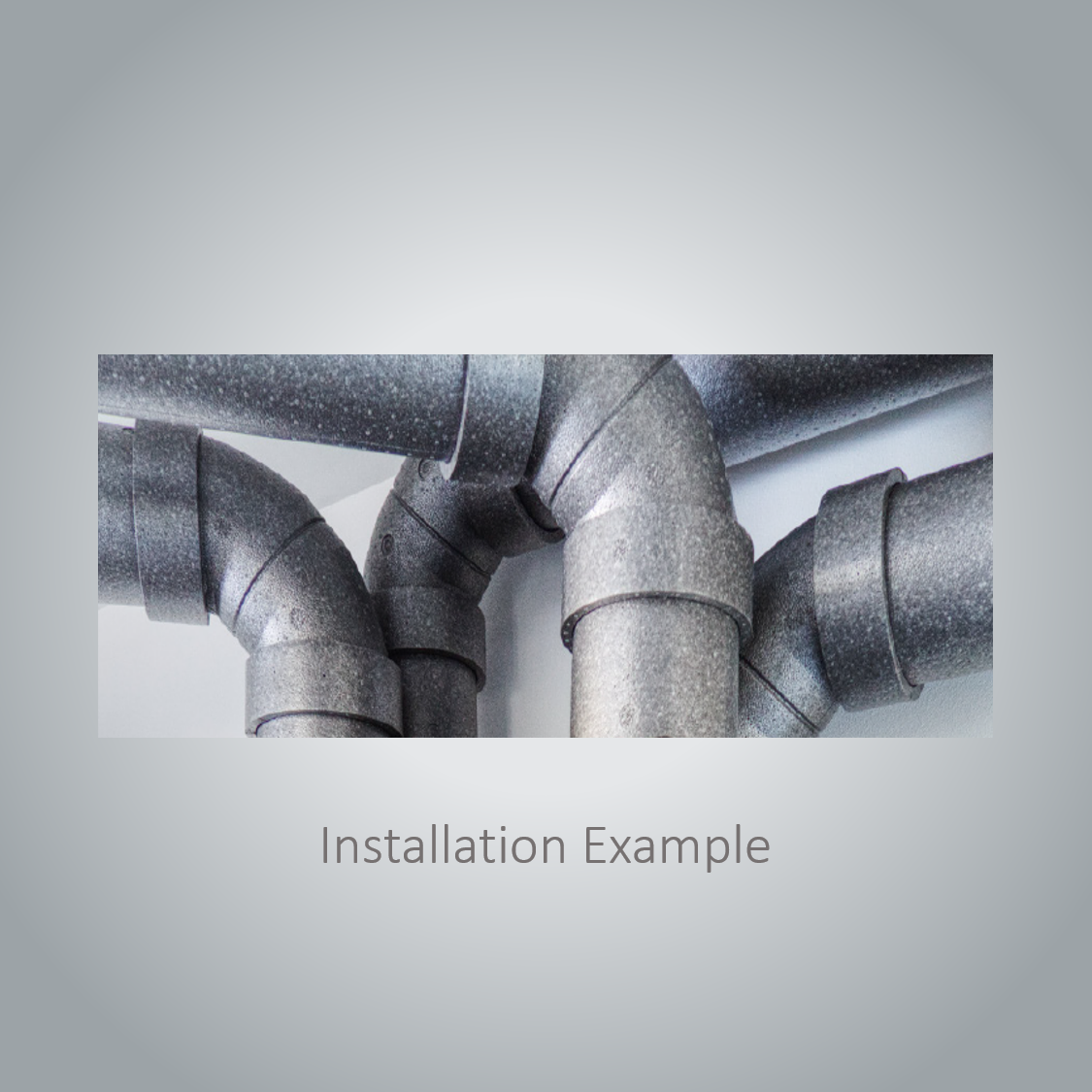

Installation advice

The material can be easily cut with a standard Stanley knife and the parts can be assembled without any further tools. The connections are stiff and airtight, however, for sturdy installation we recommend to use adhesive sealant. Make sure all cuts and lengths fit well, before using sealant.

Expanded Polypropylene – The perfect material for ducts & fittings

For the last few years, the HVAC industry has been allowing expanded polypropylene (EPP) to enter more and more applications. It is light and don’t require additional insulation. With its superior thermal conductivity of around λ = 0.036-0,040 [W/m*k] it eliminates thermal bridges and with the supplied joiner it achieves air tightness, which is suitable for Passive House standard.

Additionally, and despite plastic’s bad reputation, EPP foam is sustainable, 100% recyclable and presents a low carbon footprint in its production.
